Edwards 100 ton jaws iv hydraulic ironworker

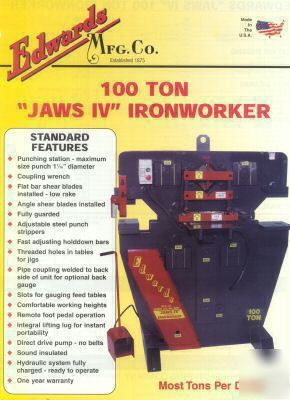

(1) NEW Edwards 100 Ton Hyd. Jaws IV Ironworker with Standard features: Punch & Die Starter Box supplied at NO CHARGE !
* Punching Station-Max size punch 1-1/16" dia
* flat bar shear blades installed- low rake
* Angle shear blades installed
* Adjustable steel punch strippers
* Fast adjusting holddown bars
* threaded holes in table for jigs
* Pipe coupling welded to back sideof unit for optional backgauge
* Slots for gauging feed tables
* Remote foot prdal operation
* Lifting Lugs for portablity
* Hydraulics Fully charged ready to operate
* Std Punch & Die Starter Box Included at NO CHARGE (8 sets 3/16" to 1-1/16") List Price for Kit $236.00 .
2. Punching Capacity:1-1/16" dia in 1" Plate
7. Angle shearing:Max.5" x 5" x 1/2"
8. Flatbar shearing:Max width: 3/4" x 14/ Max Thickness: 1"" x 10"/Max. Round:1-1/4"/Max. Sq:1-1/4"
9. Cycle Time: 1/2" x 2" 2-seconds
10. Main Motor: Std- 7.5HP 208/240/3/60 (440/480/3/60 Available ) Upgrade Cost Applies: ADD $120.00
11. Delivery: 20 days or less, subject to prior sale. We Have (1) machine available for immdediate delivery which is subject to prior sale.
12. F.O.B. Point Easton,Pa. or other locations

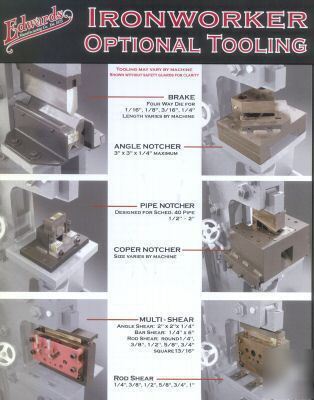

Optional Accessories on Original Equipment
1. Special Voltage: Add $120.00 (440/3/60)
2. Stroke Limiter: Add $ 222.00
3. Electronic Stroke Control; Add $996.00
4. Greesless Slides: add $240.00
5. Quick Change Punch Coupling: Add $479.00

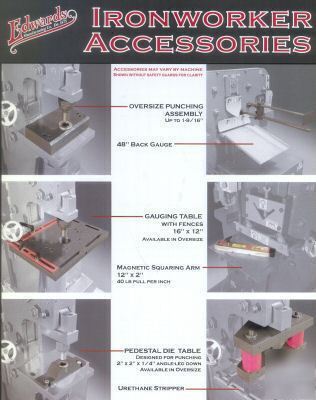

1. Notcher Table Blades: Add $1,019.00
2. 12" Brake w/4 way Die: Add 935.00 ( 1/16",1/8",3/16",1/4" )
3. Oversize Assembly: Add $448.00
4. Back Gauge: Add $179.00 ( up to 48")
6. Multi Shear: Add $706.00 (Angle 2" x 2" x 1/4",Bar 1/4" x 6" ) Rod 1/4".3/8",1/2"5/8",3/4" SQuare: 13/16"
7. Pedestal Die Table Std to 1/1/16: Add $302.00
8. Pedestal die Table Oversize to 1-9/16": Add $358.00
9. Pipe Notcher Housing for 1/2" to 2" Dies: Add $269.00
10. Punching Gauging Table: 16" x 12 " Std Dies ; Add $420.00
11. Punching Gauge Table oversize dies: Add $504.00
12. Quick Change Punch Coupling: Add 722.00
13. Rod Shear & Housing: Add $980.00 ( 1/4" 3/8",1/2",5/8",3/4",1")
14. Urethene Stripper Assembly: Add $420.00
15. Vee Notcher 3" x 3" x 1/4" Add $840.00
16. Pipe Notching Dies 1/2" Add $302
HAVE ANY QUESTION,GIVE US AN EMAIL!
EDWARDS IS OUR PRIMARY IRONWORKER PRODUCT LINE
"START THE YEAR OFF WITH A PUNCH"
