I2C-osc(1K-68MHZ programmab oscillator) basic stamp pic

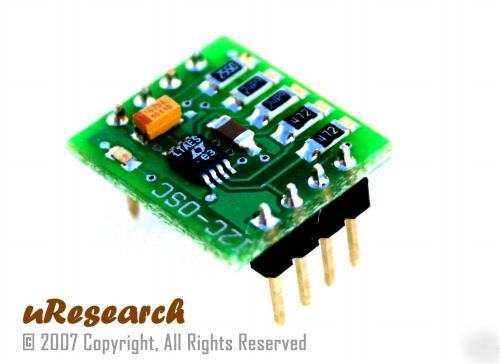

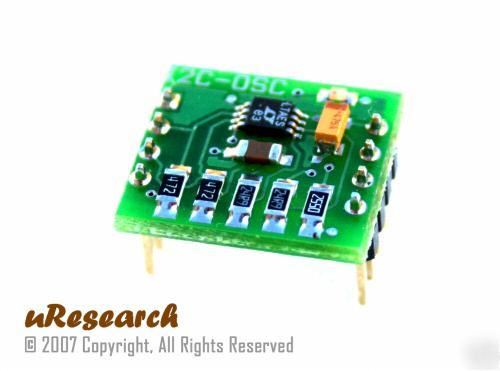

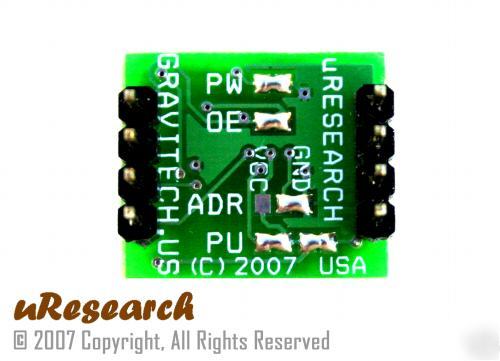

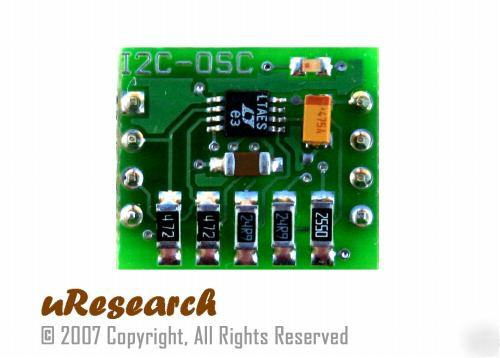

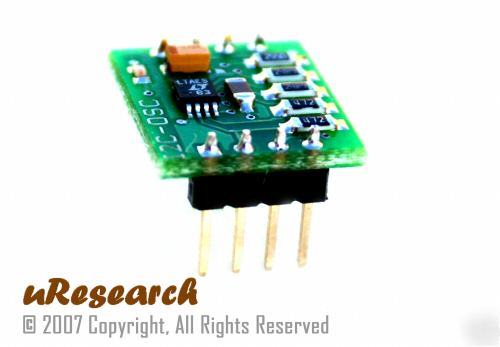

This board features innovations that set it apart from other programmable oscillator module. Innovations feature like on-board I2C address jumpers, pull-up resistors, and power LED. The module can be quickly connected directly on to the breadboard. The board is small and compact in size 0.70 x 0.61 inches.
The I2C-OSC is designed base on LTC6904 IC. It is a low power self contained digital frequency sources providing a precision frequency from 1KHz to 68MHz, set through an I2C bys. It operates over a single wide supply range of 2.7V to 5.5V.
A jumper pins vary the fixed I2C address and allow up to two I2C-OSC to share the same I2C bus.
· Up to 2 I2C-OSC on the same bus
· 1KHz to 68MHz square wave output
· 0.5% (Typ) initial frequency accuracy
· Frequency error <1.1% over all settings
· Jitter < 0.4% typical 1KHz to 8MHz
· I2C Interface up to 3.4 Mbps
· Stand alone module, no external components required
· On-board I2C address jumpers, pull-up resistors and power LED
· High quality double sided PCB
· Small and compact in size 0.70 x 0.61 inches
· Dual row 0.6†width, 0.1†pitch header pins
· Flexible operating power supply voltage range of +2.7V to +5.5V
· Suitable for 3.3V or 5.0V microcontroller
For more information please see: I2C-OSC User Manual
Basic Stamp BS2P example code: I2C-OSC.bsp
LTC6904 datasheet: LTC6904.pdf
“This is sold fully assembled and testedâ€
· Product will be carefully packed with antistatic material.
