Taig desktop cnc micro mill with cabinet and computer

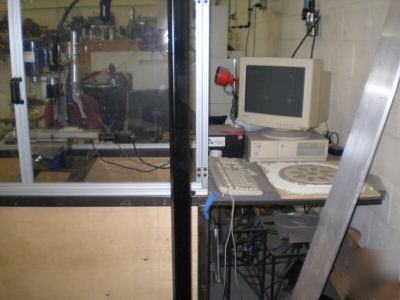

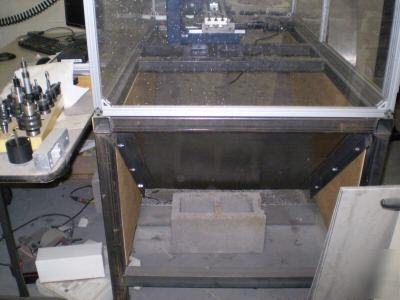

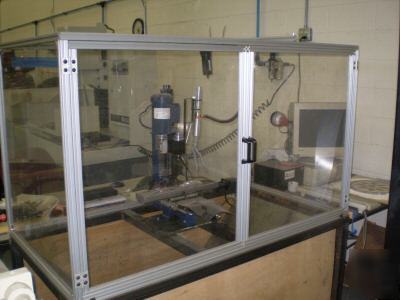

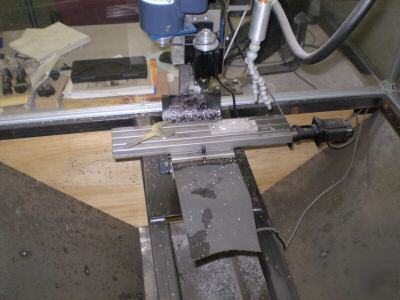

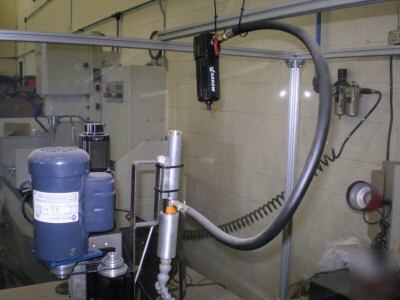

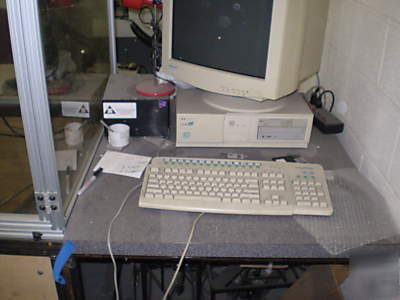

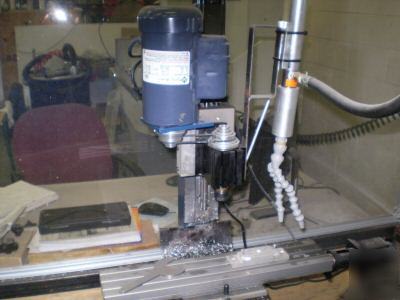

THIS TAIG MINI MILL COMES WITH 2X2 BOX STEEL BENCH WITH COMPUTER TOP BUILT IN,ALSO HAS A CHIP TRAY WITH FUNNEL CHUTE FOR EASY CLEANING,ALSO COMES WITH COLD AIR CHIP BLOWER,1/4,3/16,3/8 COLLETS, A SMALL VISE AND A FEW SMALL HOLD DOWN CLAMPS, THIS IS A FULLY CNC MACHINE ON ALL 3 AXIS AND COMES READY TO GO,,, IT ONLY HAS ABOUT 20 HOURS ON IT,,WE HAVE UPGRADED TO A LARGER MACHINE AND NO LONGER USE IT .IS HAS A EXCELLENT PLEXIGLASS CABINET WITH BARN STYLE DOORS FOR EASY ACCESS,BUILT WITH ALUMINUM EXTRUSION.ALSO COMES WITH COMPUTER AND MONITER
SORRY ABOUT THE PREVIOUS INFO ON THE SPECS ON THIS MACHINEI ACCIDENTLY COPIED THE INFO FOR THE 2018 AND THE 2019,AND THIS MACHINE IS A 2027 ER HERE ARE THE CORRECT SPECS
* Height 21-3/8 in (manual) 26-3/8 in (CNC)
* Width 17 in (manual) 22 in (CNC)
* Depth 16-3/4 in (manual) 21 in (CNC)
* Weight 65lbs. (manual) 85lbs. (CNC)
* Maximum bearing runout 0.0004 in.
* Table dimensions 3 1/2 by 15 1/2 inches
* All lead screw drives have friction adjustable micrometer dials in .001 inch increments
* Pulley type std. 5/8 in. bore multi-step vee belt, 6 speeds.
* Construction - Steel, hard anodized aluminum on all moving components, adjustable brass gibs, and precision ground steel ways hand lapped for long life and accuracy.
* Travel in X axis 9.5 in or 12 in. depending on which model you order.
* Maximum Z-distance to table 9.0 in
* Z-Axis column swivel 180 degrees (more like 120 usefully)
* 6 spindle speeds 525-5200 RPM (1050-10,600 RPM for CNC and CNC ready, or upgrade motor on manual machine)
* Spindle head rotation 90 degrees (either horizontal or vertical)
* Spindle ID taper 15 deg (30 deg included) , or ER16 spindle option.
* Max spindle speed 5300 RPM 1/5hp manual , 10600 rpm 1/4hp CNC and CNC ready
* Sealed precision ball bearing
* Bearing OD 1.5748 in., ID 0.6692 in.
* Spindle nose 3/4 in. - 16 (3/4 in. SAE), or ER16 thread.
* Spindle hole 0.343 in. (.4in+ on ER16, to allow 3/8" and 10mm tooling)
* Max. standard collet diameter 9/32 in, 3/8 and 10mm in ER16 collet version.
Pinouts for the Microproto controller
Micro Mill factory assembled 9.5" travel in X axis
Micro Mill factory assembled 12" inches of travel in X axis
Vise 2.125" opening, 2" wide, with collet closer and 1/4" and 3/16" collets for standard spindle mill
Vise 2.125" opening, 2" wide, with 3/16" and 3/8" collets for ER spindle mill.
UPGRADE ANY of the above MANUAL MILLS with a 1/4 hp, continuous duty, 3400 rpm motor. This motor is used on all the CNC and CNC ready mills
Taig CNC Ready Milling Machine:
CNC ready milling machine with Nema 23 stepper motor mounts. 9.5" travel in X axis Does not include stepper motors or control system.
CNC ready milling machine with Nema 23 stepper motor mounts. 12" travel in X axis Does not include stepper motors or control system.
Vise 2.125" opening, 2" wide, with collet closer and 1/4" and 3/16" collets for standard spindle mill
Handcranks for all three axis in addition to CNC motor mounts
CNC Mill with controller,200 oz/in stepper motors, MPS2000 DOS G-Code Software, collets and vise.
New Controller, Universal Step and Direction Input, Pre-Wired I/O Port, 4th Axis Ready.
CNC Mill with 12" travel in x axis, 200 oz/in stepper motors, G-Code Software, collets and vise.
New Controller, Universal Step and Direction Input, Pre-Wired I/O Port, 4th Axis Ready.
Rotary Table for 2026 or 2027 with 200 oz/in stepper.
MaxNc Digitizing Probe, must be ordered with mill. No Discount, Price is Net
Mach3 License only with purchase of the CNC Milling Machine. The Mach 3 xml setup files are already included with CNC mill software disc.
Mill Prices with the ER16 Spindle Option
Micro Mill factory assembled (X axis travel 9.5 inches).
Micro Mill factory assembled (X axis travel 12 inches)
2018 converted to CNC ready with Nema 23 motor mounts, adjustable bronze leadscrew nuts, and upgraded 1/4 horse power motor . Does not include stepper motors or control system.
2019 converted to CNC ready with Nema 23 motor mounts, adjustable bronze leadscrew nuts, and upgraded 1/4 horse power motor . Does not include stepper motors or control system.
2018 Full cnc mill with ER Spindle*
2019 Full cnc mill with ER Spindle*
Complete headstock with ER Spindle
ER Spindle Cartridge (spindle,2 bearings,spacer,ER nut)
Vise 2.125" opening, 2" wide, with 3/16" and 3/8" collets for ER spindle mill.
UPGRADE ANY of the above MANUAL MILLS with a 1/4 hp, continuous duty, 3400 rpm motor. This motor is used on all the CNC and CNC ready mills
Rotary Table for 2026 or 2027 with 200 oz/in stepper.
MaxNc Digitizing Probe, must be ordered with mill. No Discount, Price is Net
Mach3 License only with purchase of the CNC Milling Machine. No Discount, Price is Net. The Mach 3 .xml setup files are already included with the CNC mill disc.
*(does not include 3 collets that the standard CNC mill comes with)
ER Collet Set with six ER collets (1/16, 1/8, 3/16, 1/4, 5/16, 3/8)
Milling Machine Accessory Packages
Here are accessory packages for any of the standard spindle Taig milling machines
Collet set, collet closer with 8 collet sizes 1/8,5/32,3/16,7/32,1/4,9/32,5/16 and one blank
0-1/4" Jacobs drill chuck, commercial quality 3/8-24 thd.
Drill chuck arbor (3/8-24 thread), attaches Jacobs chucks to headstock spindle
Fly Cutter, 1 1/4 to 2 1/2 inch diameter, 3/4-16 thread mount, tool bit included.
Milling vice with handcrank, 2.125" opening x 2" wide (for milling machine only, not lathe milling attachment)
5 Piece end mill set (double ended) 1/16,3/32,1/8,5/32,3/16
Use the package below if you bought the mill with the collets/closer/vise "VC-STD"option:
0-1/4" Jacobs drill chuck, commercial quality 3/8-24 thd.
Drill chuck arbor (3/8-24 thread), attaches Jacobs chucks to headstock spindle
Fly Cutter, 1 1/4 to 2 1/2 inch diameter, 3/4-16 thread mount, tool bit included.
5 Piece end mill set (double ended) 1/16,3/32,1/8,5/32,3/16
Here is an accessory package for the ER spindle milling machines.
ER Collet Set with six ER collets (1/16, 1/8, 3/16, 1/4, 5/16, 3/8)
0-1/4" Jacobs drill chuck, commercial quality 3/8-24 thd.
Drill chuck arbor (3/8-24 thread), attaches Jacobs chucks to headstock spindle
Milling vice with handcrank, 2.125" opening x 2" wide (for milling machine only, not lathe milling attachment)
5 Piece end mill set (double ended) 1/16,3/32,1/8,5/32,3/16
1" Spindle Wrench x 2 (you need two to open and close the collets)
Use the package below if you bought the mill with the collets/closer/vise "VC-ER"option:
0-1/4" Jacobs drill chuck, commercial quality 3/8-24 thd.
Drill chuck arbor (3/8-24 thread), attaches Jacobs chucks to headstock spindle
5 Piece end mill set (double ended) 1/16,3/32,1/8,5/32,3/16
1" Spindle Wrench x 2 (you need two to open and close the collets)
Taig has a few more ER16 accessories available, as well as a tooling plate, here is the "everything" package.
ER Collet Set with six ER collets (1/16, 1/8, 3/16, 1/4, 5/16, 3/8)
0-1/4" Jacobs drill chuck, commercial quality 3/8-24 thd.
Drill chuck arbor (3/8-24 thread), attaches Jacobs chucks to headstock spindle
Milling vice with handcrank, 2.125" opening x 2" wide (for milling machine only, not lathe milling attachment)
5 Piece end mill set (double ended) 1/16,3/32,1/8,5/32,3/16
1" Spindle Wrench x 2 (you need two to open and close the collets)
4" x 14" x 5/8" Tooling plate for Mill.
