New chromalox circulation heater nwh-18-175P-E1

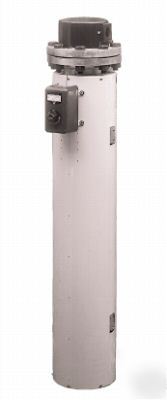

Chromalox Industrial/Commercial Water Heater - NEW - Still in Crate
Washrooms, dish washing and rinsing, process water heating, jacketed kettles, hot water storage tanks and hydronic heating systems. Heaters can be mounted on the side of tanks, inserted into closed-loop systems or installed in-line for process heating.
* 8 inch, 150 lb ANSI blind flange design
* 175 kW, 240V 3-Phase, 421 Amps (3 circuits) (can be rewired in the field for use with 480V 3-Phase power or for use with different element configurations for a reduced wattage output. Reference installation manual for wiring schematic)
* (18) 0.475" Dia. copper elements (50 W/In2)
* Galvanized ASTM A53B carbon steel pipe vessel
* Galvanized ASTM A516 Grade 70 carbon steel end plate
* Provided with thermal insulation and painted sheet metal jacket
* 2-1/2" NPT pipe inlet and outlet
* General purpose terminal enclosure with convenient field wiring terminals
* With side mounted AR thermostat (60 - 250°F)
Installation manual: http:// /catalog/resources/PE424.pdf
