Old clipper seed cleaner manual - model m-2B
This is a scanned COPY of an old manual that is out of print.

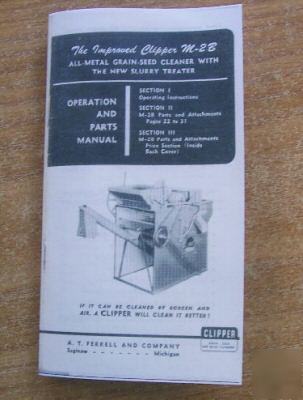

The booklet is called "The Improved Clipper M-2B"
This is for the little RED METAL seed cleaner. The M stands for metal.
This is the instruction manual that gives general directions on how to operate your mill and gives the general uses of different screens. It has illustrations of actual sizes of screen perforations. It has a diagram of repair parts.
It has a suggested Screen list that tells you which screen to use in the top and which one to put in the bottom for the various commodities.
On page 4 it shows the cross-sectional view showing the path of seed in the machine.
It has a total of 36 pages if you count the front and back of the cover. It measures 4 inches by 7 1/2 inches.
