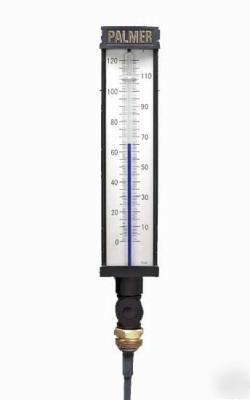

Palmer 9" economy industrial thermometer 9ALSB
9" Economy Industrial Thermometer w/Sky Blue Fill
The 9ALSB Economy Industrial Thermometer features a 9" case, with either 3 -1/2" or 6" stem lengths. Ranges up to 300°F are available. Contains the new 'SKY BLUE' Fill, an environmentally safe, non-toxic, mercury-free Blue Liquid. Optional red spirit fill also avaiilable. Flex angle adjustment permits cases to be rotated 180° and stems to be positioned in 10° increments. Standard Lens front glass tube is "Red Reading" Mercury-Filled or Sky Blue Fill. Compact, yet visible 9" (229mm) Plastic or Aluminum, or 12" (305mm). Aluminum (only) cases, fitted with a "V" shaped white aluminum scale graduated with bold black lines and numerals. Economy Line Industrial Thermometers are calibrated against standards traceable to the National Institute of Standards and Technology (NIST) and are guaranteed accurate to ±1 scale division. The 9AL models feature a black-finished Aluminum Case. Glass crystal, machined Brass Swivel Nut, and cast aluminum stem and seat are standard on all 3 - 1/2" stems. Tapered Bulb Chamber allows maximum metal-to-metal contact with matching tapered thermowell for fast response and increased accuracy. Brass Swivel Nut is industry standard 1 -1/4" -18 UNEF thread. A full selection of Fahrenheit or Dual F & C range scales are available from -40 to 500°F (-40 to 290°C). Stock stem lengths are 3.5" (89mm), 6" (152 mm), 8" (203 mm), 9" (229 mm), and 12" (305 mm).
Case: Painted Aluminum (AL) or molded Plastic (FL)
Stem Material: Standard cast Aluminum Stem and Seat
Stem Length: Listed in "Base Model" table, pg 2 of Catalog
Ranges: Listed in "Range" table, pg 2 in Catalog
Bulb: Choice of tapered Bulb Chamber or perforated Air Duct design
Fitting: 1-1/4" - 18 UNEF machined Brass Swivel Nut
Scale Face: High visibility V-shaped painted white aluminum scale, black markings
Glass Tube: "Red Reading" Mercury Fill, Sky Blue Fill, Red Spirit Fill optional
Crystal: Glass Crystal Standard
Accuracy: Accurate to ±1 scale division
Calibration: Calibrated to NIST traceable standards
