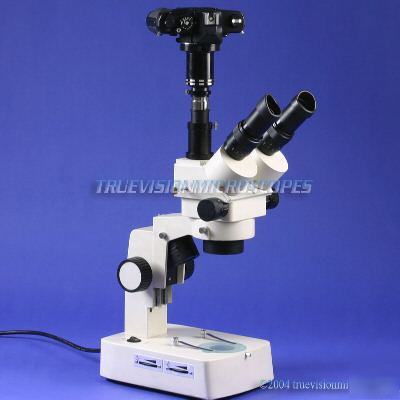

7X-90X zoom stereo microscope trinoc photo port w/case
* High Quality Professional Stereo Zoom Trinocular Microscope!
* Bright and Clear 3-D Stereoscopic Images.
* Perfect for Studying Plant-Animal-Mineral Specimens.
* Great for Gemologists, Collectors, Engravers, Document Examiners, Students, Schools, Etc.
* Comparable Microscopes Sell for $1800+.
* Photograph Your Own Specimens!
* Have Your Own Complete Digital Video Microscopy System!
* Capture Images With Your Computer!
* Display Images on a High Resolution CCTV Monitor or Television!
* Videotape What You See Under the Microscope!
* Versatility - Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
* Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.
* Extra Large Glass in Eyepieces for Ease of Viewing and Less Eyestrain. The Glass Itself is 1 Inch Diameter! Other Models are Only 3/4 Inch Across!
* Zoom Range 7 - 90x Continuous Magnification (using both eyepiece sets).
* Wide Field 10x and Wide Field 20x Eyepiece Sets Included.
Head - Interpupillary Distance - Diopter
* 45 Degree Inclined Trinocular Head, Rotatable 360 Degrees.
* Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
* Diopter Adjustment on Both Oculars to Correct for Your Specific Vision Needs.
* Independent Variable Intensity Dual Halogen Upper and Base Illumination.
* Most similar scopes are not independent, so the intensity is adjusted for both upper/lower simultaneously with one knob.
* Easy Large-Sized Focusing Knobs on Both Sides of Microscope.
* Rack and Pinion Steel Gears for Focus Movement.
* Extra Long Focusing Adjustment Range: 90mm (Maximum Head Travel Distance).
* Nice Working Distance to Allow Room for Your Tools (Distance from Bottom of Lens on Head to Top of Object in Focus): 92mm.
* Large Working Area: 160mm. Distance from Bottom of Head to Top of Stage when Head Raised to Maximum Height.
* Total Overall Height of Microscope: 475mm.
* Instrument Weight: 14.5 lbs.
* Includes Rubber Eye Guards for Blocking Stray Light.
* Includes Double Sided Black/White Disc Plate to Replace Glass Stage Plate.
* Includes: Instruction Manual, Dust Cover, Extra Bulb and Fuse.
* Optional Bottom Lens to Increase or Decrease Magnification or Change Working Distance.
* Manufactured under ISO: 9001 Standards.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 110 VAC (email about 220V availability).
5 Year Manufacturer's Warranty
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.
Camera and Attachment NOT Included.
This system is capable of this type of connection.
Digital Camera - PC Connectivity.
This system is capable of this type of connection.
All images taken using this Microscope!
Taken by our In-house Technicians.
same eagle image at 15x Magnification
RISK FREE - MONEY BACK GUARANTEE - 10 DAY TRIAL PERIOD!
QUALITY SERVICE AFTER THE SALE!
If you have questions or issues after the sale, please call our technicians. They are just as happy to talk to you after the sale as before. We hire skilled sales technicians who are required to have a Bachelor’s Degree in biology, engineering, or related science fields.
