Miyano model #tsv-25 cnc drilling & tapping machine

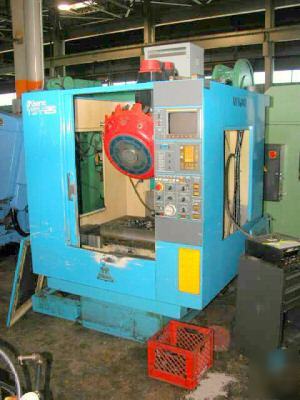

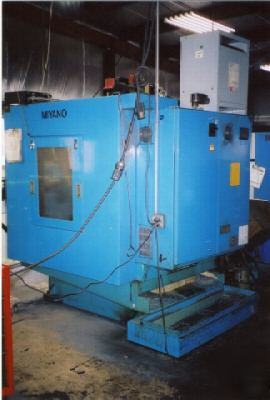

#TSV-25 MIYANO CNC DRILLING & TAPPING MACHINE
RACO Stock Number R014952, S/N TSV250142
TABLE MAXIMUM LOADING CAPACITY - 440 LBS.
LONGITUDINAL TABLE TRVEL - ( X AXIS ) - 19-5/8"
CROSS TABLE TRAVEL - ( Y AXIS ) - 15"
VERT. SPINDLE HEAD TRAVEL - ( Z AXIS ) - 9-7/8"
SPINDLE SPEEDS - 60 TO 6000 RPM
SPINDLE MOTOR MAXIMUM RADING - 7.5 HP A.C.
RAPID TRAVERSE FEED - ( X & Y AXIS ) 787 IPM
RAPID TRAVERSE FEED - ( Z AXIS ) - 591 IPM

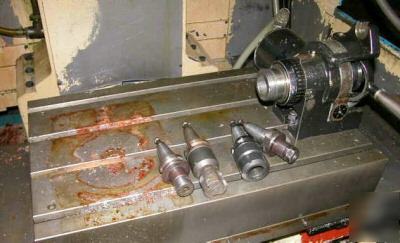

SHANK OF TOOL HOLDER - MAS BT 30
MAXIMUM TOOL DIAMETER - 3-1/8"
MAXIMUM TOOL WEIGHT - 6.6 LBS.
TOOL SELECTION METHOD - RANDOM ( SHORTER PATH )
TOOL SELECTION TIME - 2.8 SECONDS
CAPACITY DRILL/TAP, CAST IRON - 1" DIA. F0.006/0.7 X 0.078
CAPACITY DRILL/TAP, MEDIUM CARBON STEEL - 3/4" DIA. F0.006/0.7 X 0.078
*** IN GOOD RUNNING CONDITION, CAN BE INSPECTED UNDER POWER ***
*** FREE LOADING ONTO OPEN TRUCK, PRICE INCLUDES 30 DAY RETURN PRIVILEGE
