Clean room components hepa filters air shower plus more
The room was stick built (out of steel) all of the walls have been discarded. I have found a few of the photos we have of the room when it was functioning. If you email me I will call you to answer your questions.
The system was calculated as a class10,000 clean room. The room size was 18 feet wide by 39 feet long with an eight foot drop ceiling.
(The Flanders heppa filter frames do not have their own fans, they require an air handler)

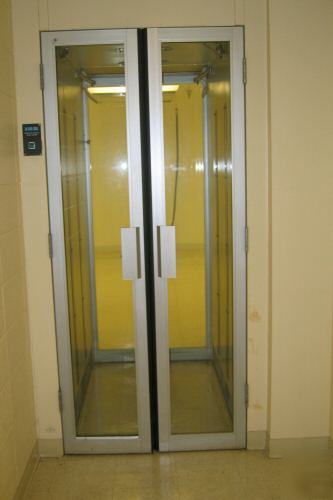

Air Shower: 10 foot high x 4 foot wide x 5 foot deep 208 volts 9 amps

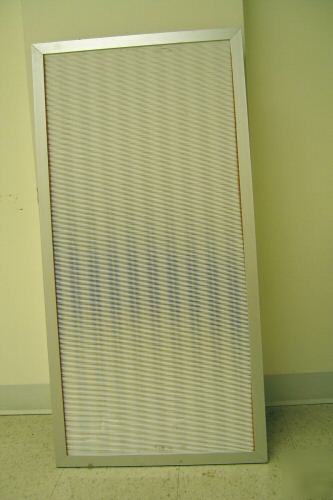

16 Heppa filters 21.75" x 44" x 2.668" Resistance .48 Test Flow 560 CFM
Penetration .000% Model # 0-007-2-19-06-SU-00-E1386

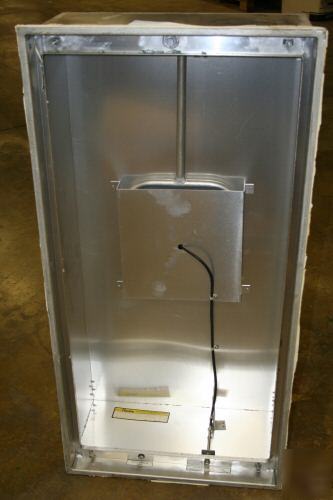

16 Ceiling inserts for Heppa filters MFG by Flanders 1 foot high x 2 foot wide x 4 foot long

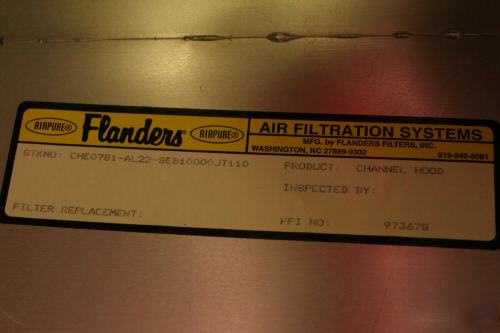

Known as a Flanders CHANNEL HOOD (r) with 16 stainless steel grills that are bolted on after installation. Airpure Flanders STKNO: CHE0781-AL22-SE10000JT110
Humdifier/Dehumidifier 230 volts 13 amps

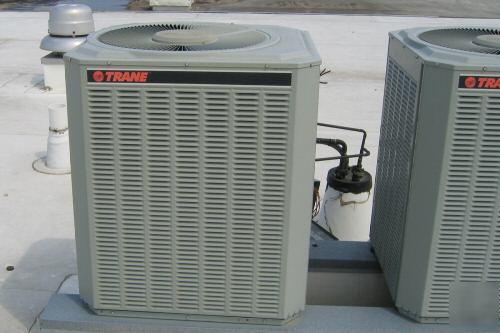

Air conditioner 1 208 volts 22 amp
Air conditioner 2 208 volts 22 amp
Air Conditioner 3 208 volts 15 amps

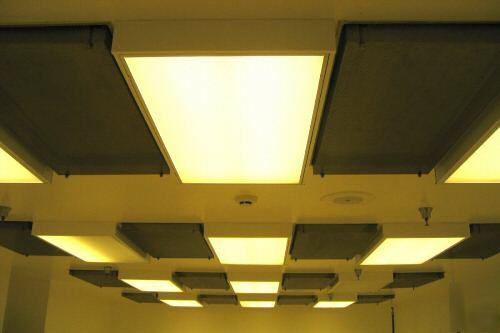

There are 11 ceiling lights that are included.
Pass through for materials (4)
Two (2) pass through poly pro 24 x 8 x 30 outside dimensions
Two (2) pass through steel with stainless doors. 30 x 32 x 26 outside dimensions
Three (3) windows that are 36 x 18 glass size. They are steel frame, and
are supposed to be 2 hour burn rated.
One (1) window that is 35 x 40 glass size with steel frame 2 hour burn
Two (2) windows that are 40 x 33 with wire in the glass. Again is all glass
The double door you see in the one photo is not available. It was required as an emergency exit for egress.
I will update the listing as questions come in and are answered
This item is also listed for local sale and may be removed from E Bay
Our building is being leased, the warehouse needs to be cleaned out. We will accept any reasonable offer for this equipment.
If item not paid for within 7 days it will be re-listed.
Please email if you have any questions.
