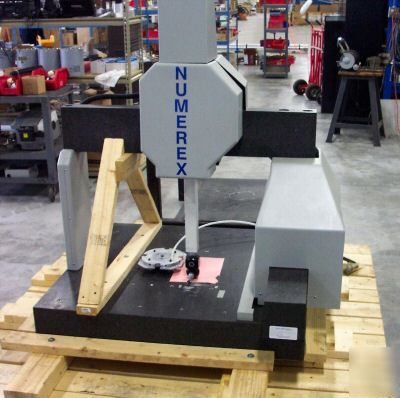

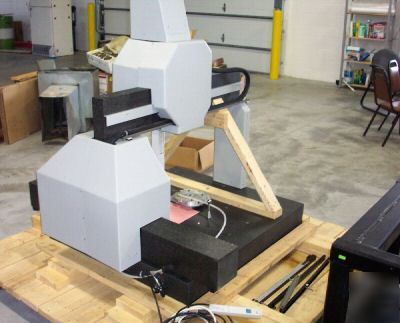

Numerex gb 2428-18DCC coordinate measuring machine
With Renishaw Motorized Touch Probe
* 24" x 28" x 18" work envelope
* Granite and Ceramic Guide Ways with Frictionless Box Type Air Bearings

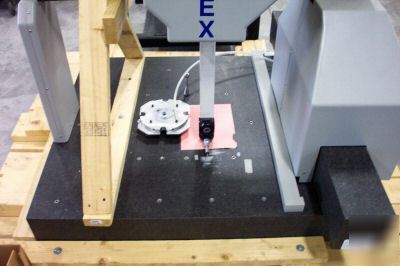

* Black Granite Table with Threaded Inserts
* Comes with U-Soft Version 8.53 DCC Measurement Software
* Volumetric Accuracy of .00060 and Repeatability of .00010
* Price when new was $78,000.00
* Measuring System: Photoelectric, Optical Encoder System with Glass Scales on each axis, Resolution of .00004" (.001 mm)
Factory Accuracy Performance Data:
* Linear accuracy, per axis = .00020"
* Volumetric accuracy, 3D = .00060"
* Repeatability, per axis = .00010"
* Zeiss Joystick Control Box

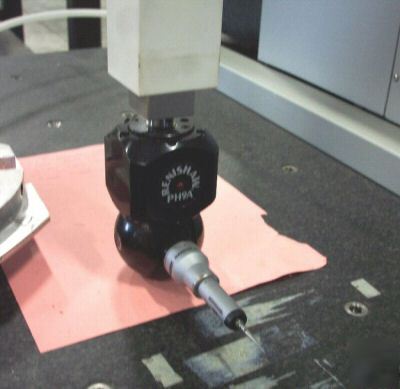

* Renishaw PH9A/TP-2 Motorized Touch Probe and Cable
* U-Soft DCC Software Discs and Operator Manuals
* Compaq Pentium Computer w/Monitor included
* Scale Encoder Interface / Interpolation Unit
* Oil-Water-Particle Filter & Air Regulator

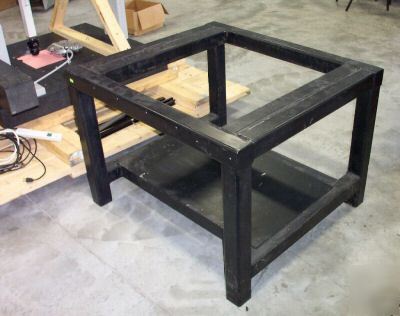

* Machine Stand with Leveling Pads
Machine Dimensions and Specifications:
* Clearance Under Bridge = 22"
* Maximum Work Piece Size = 31.8" x 40"
* Maximum Distributed Work Piece Weight = 1,400 Lbs.
* Machine Weight = 2,200 Lbs.
* 120 Volt / 20 Amp Dedicated Line
A Little Bit About This Machine
This machine was completely re-furbished in 2004 by Alliance Metrology, you can visit their website at .
This is a great little machine, very sturdy and robust enough for use on the shop floor.
We are: Dimensional Concepts, 14280 Sunfish Lake Blvd. NW, Ramsey MN 55303
