Light green phenolic micarta 1 piece 3 1/2 inch thick

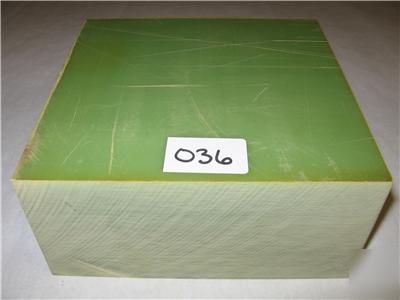

LIGHT GREEN PHENOLIC MICARTA 1 PIECE 3 1/2 INCH THICK
1 PIECE - 3 1/2" X 7" X 7 5/16" inches (+/- 1/16" width and length).
G10/FR4, the most versatile all-around laminate grades are produced by inserting continuous glass woven fabric impregnated with an epoxy resin binder while forming the sheet under high pressure. G10 exhibits superior mechanical and dimensional stability and doesn't shrink. FR-4 is an abbreviation for Flame Resistant 4. G10/FR4 has excellent dielectric loss properties, and great electrical strength.The difference between grades G10 and G-10/FR4 is that G10/FR4 is a fire retardant grade. G10/FR4 (also known as Garolite) can be substituted where G10 is specified; G10 can never be substituted for G10/ FR4. G10 is also known as Micarta and Garolite and can be used for mechanical insulation, gears, test fixtures, washers, prototypes, static sensitive electronic equipment, spacers and tight tolerance machined parts ect..
Tensile Strength Lengthwise = 45,000 psi.
Tensile Strength Crosswise = 38,000 psi.
Flexural Strength Lengthwise = 75,000 psi.
Flexural Strength Crosswise = 65,000 psi.
Maximum Operating Temperature = 284*F/140*C
