Pancake compression canister load cell tension/compress
Brand New 5,000 LB Load Cell & Read-out!
(We also offer 10,000 x 2 lb accuracy for the same price)
* Pancake style Tension or Compression design.
* Stainless steel construction.
* Nema 6 water tight potted design.
* Temperature compensated -10C to + 80C.
* 300% overload rating - 20' cable.
* Thread size top/bottom is 1/2" and Pitch is 20.
The digital read-out is programmed & calibrated to the load cell so that all you have to do is plug it in and start using it. The read-out runs on 110vac adaptor. It is NTEP approved. It has a Tare, Zero, Net/Gross, Lbs/Kg and Print buttons. The display is Nema 12 sealed. It is temperature compensated. It comes standard with an RS-232 continuous communication port. Mount stand is included. Peak Hold is an option to hold max force or breaking point on the display until released by user. ($39.00 adder.)

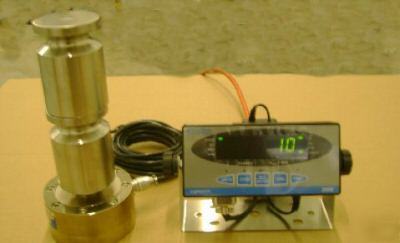

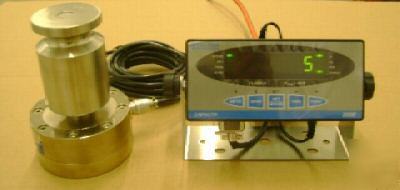

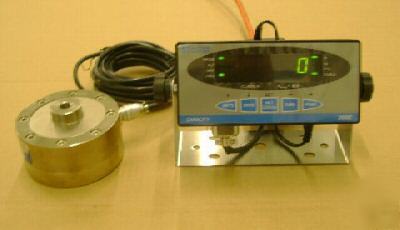

"As you can see in the pictures, the load cell is sitting by itself at zero. Then in the next picture, you can see that we added a 5 lb test weight. In the following picture we added another 5 lb test weight. This is to show the accuracy of the system and it is this accurate all the way to 5,000 lbs."
Other capacities available 10K, 25K, 50K, 100K, 200K, 500K and 1,000,000 pounds. Please call us.
PEAK HOLD OPTION = $39.00...Please specify by phone or email.

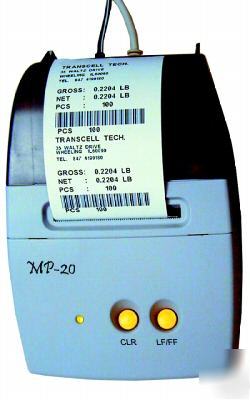

Add a label printer for only $199.00
Contact (****@snet.net) for all inquiries regarding Weight Instrumentation, Scales and Load Cells . We sell all makes and models as well as parts and kits. OEM's welcome! (***) 955-9004 or (***) 537-2199.
