Aerotech 1000DC permanent magnet rotary servo motor
Aerotech, Inc. 1000 Series Brush, Rotary DC Permanent Magnet Servomotor (051006600150)
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!

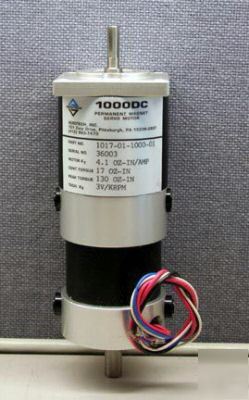

Aerotech, Inc. 1000 Series Brush, Rotary DC Permanent Magnet Servomotor
* Part Number: 1017-01-1000-01
* Continuous Torque: 17 oz-in
* Tachometer Kg: 3Volts/KRPM
* Lead Time from Manufacturer: 5 to 6 weeks
* Tachometer Part Number: 77822-034
* Dynamically balanced, skewed rotor for exceptionally smooth velocity
* Standard NEMA 23, 34, and 42 frame sizes
* Standard stainless-steel shaft resists corrosion
* Double shielded bearing for long motor life
* Options include tachometer, encoders, metric flange, and integral cable
* The 1000 series motors are Aerotech’s high-performance brush-type rotary DC servomotors. These motors are designed for a variety of general and high-performance motion control applications. Custom mechanical or electrical configurations are also available with minimal lead time from Aerotech.
* The 1000 series DC motors feature a dynamically-balanced skewed rotor and tachometer assembly for less cogging and smoother velocity control. The skewed laminations help reduce the effects of torque ripple that can cause velocity disturbance. The result is a much smoother velocity profile for such applications as machine tool, medical, semiconductor, and scanning.
* The 1000 series motors come in standard NEMA frame sizes including 24, 34, and 42. The standardized flange and shaft dimensions make it easy to mount to existing NEMA-based machines.
* Each motor is constructed from high-grade materials including a stainless-steel shaft, double-shielded bearings, and precision machined housing. Full burn-in of each motor ensures long-term reliable operation.
* The 1000 series DC motors cover a wide range of torque to meet virtually all high-end DC motor applications. Continuous output torque ranges from 0.25 N-m (35 oz-in) to 1.48 N-m (210 oz-in). Peak output torque ranges from 1.84 N-m (260 oz-in) to 7.1 N-m (1000 oz-in).
