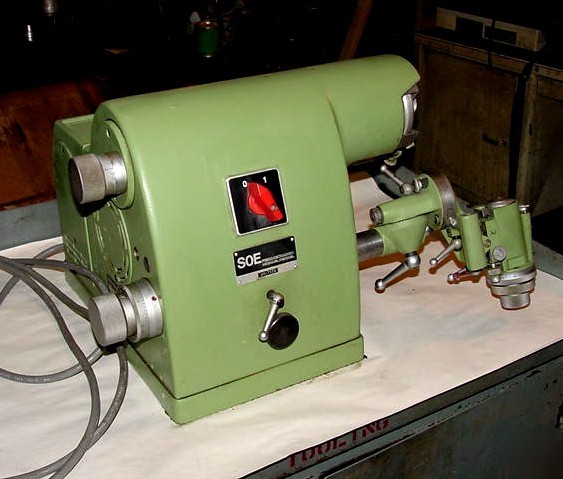

1990 DECKEL SOE TOOL GRINDER w/COMPARATOR ATTACHMENT
1990 DECKEL SOE TOOL GRINDER w/COMPARATOR ATTACHMENT
DECKEL SINGLE LIP CUTTER GRINDER
WITH OPTICAL COMPARATOR OPTION
Model #SOE S/N: 90-7179 New: 1990
Uses 4" Dia. x 1" Face x 1/2" Cup Style Wheels
Grinding Wheel Speed: 4500 RPM
Lateral Traverse of Index Head Slide for Off Center Radii Both Ways: 3/8" Max.
Maximum Relief Angle for Right Hand Tools: 45 Degrees
Maximum Relief Angle for Left Hand Tools: 15 Degrees
Number of Registers in Index Plate: 12
Maximum Collect Capacity: 5/8"
Approx. Dims.: 26" x 22- 1/2" x 12- 3/4"H
Axial Adjustable Grinding Spindle
Manual Hand Movement of Work Holder Head
Micrometer Adjustment of Wheel In & Out and Tool Slide
Factory Optional Measuring Projector, Mounts on Index Head
Bracket of SOE. Projects an 8X Magnification on the
Cutter Silhouette on an Illuminated Ground Green Screen.
When the Projector has been Mounted, the Center of the
Scale is in Exact Alignment with the Swivel Axis of the
Tool Carrier. The Tool Blank can thus be Fast &
Accurately Adjusted for Grinding any Desired Radius.
After Grinding, the Profile can be Measured & Checked to
an Accuracy of a Few Hundreths of a Millimeter.
Since the Tool Remains Clamped on the Tool Carrier, the
Profile can be Corrected without Reclamping & Resetting.
Bench Model w/Optional Factory Cabinet Base for Tool Storage
** Inspect Under Power In Our Harrison, N.J. Warehouse **
** Absolutely "As New" Condition & Appearance
- Original "Deckel Green" Paint **
Machine Location: HARRISON, NJ
