40 cfm maximum volume spencer vortex blower

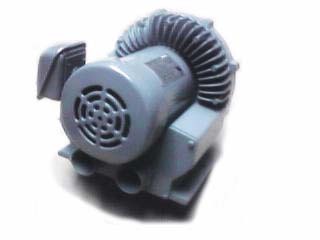

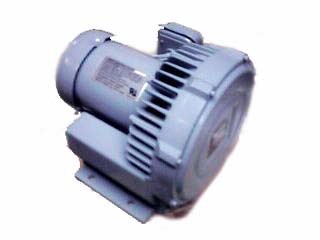

A bigger, new-in-the-box, Spencer Vortex Blower Model No. VB-003G-U that really blows.
The blower operates on 200/230/460 volts, 1.2/1.2/0.6 amps respectively, 3 phase (not your regular house electricity) current, 2 Poles, 60 Hz, at 280 watts. Applications include but are not limited to fish breeding tanks, hydroponics, fresh air supply, ice prevention bubbling, and many other airation uses.
The Insulation is Class B, maximum volume 40 cfm,. maximum operating pressure 41" H2O, Bearings: 6203/6202. The motors are fan cooled and except for where the wires go through the frame, appear to be totally enclosed.
Overall dimensions: L 9-3/4"x W 10" x H 9", The inlet and outlet ports use push-on hose connections 1-1/2" ID Hose.
