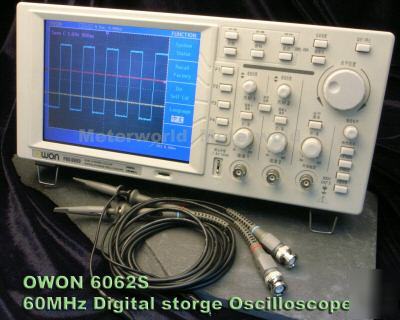

Digital 7.8"color 60MHZ oscilloscope owon PDS6062 usb
* With the bandwidth of 60MHz;
􀂄 Record length of 6,000 points for each channel;
􀂄 Sampling rates of 250MS/s for each channel;
􀂄 Reading-out with the cursor;
􀂄 Five automatic measurement functions;
􀂄 Color liquid crystal display of high resolution and high contrast with adjustable back light;
􀂄 Storage and call-out of waveforms;
􀂄 Automatic setting function provided capable of fast setting;
􀂄 Multiple-waveform calculation function;
􀂄 Implementation of detecting the average and peak values of the waveform;
􀂄 Digital real-time oscilloscope;
􀂄 Edge and video triggering function;
􀂄 RS232 or USB communication ports;
􀂄 Different continuous displaying time;
􀂄 User interface in two languages for the user’s choice. Facelift text can be your choice of chinese or English. ( picture show chinese)
manual download : http:// .cn/eng/PDS6062T%20USER%20MANUAL.pdf
1MΩ±2% in parallel with 20pF±3 pF
Auto, Free Run, Single shot, Edge, Video
General Features of PDS series
PDS series portable digital storage oscilloscopes embody completely the perfect combination of capability, speed and analysis. With 40-100M bandwidth, 250M S/s realtime sample rate on each and dual channels storage, PDS6 series would be the ideal instrument for design, maintenance and detection.
250M realtime sample rate for each channelï¼›Manual Cursor Measurement; 5 automatic measurements; High-speed screen update, Saving 4 Waveforms & setup parameters; plenty of Manual Cursor Measurement, Long memory max 6KBytes/CH,Convenient inserting interface card for RS-232C, Hardcopy and USB; 400V (DC+AV peak) maximum input power; Multilanguage offered for userÂ’s convenience
For warranty parts and service:
Will send a replacement unit within warranty period upon received the defective unit
Spare parts are available upon providing parts number,
All purchased are final, will replace defective product only.
Return package must be in the original packaging, everything must be in new condition. Missing partÂ’s or anything in original contact will not qualify for any refund.
Defective item can be exchanged within 7 days of receipt.
Replacement and refunds will not be processed until the return item received.
