New automatic table top smt pick and place machine
Please call 1-(***)-670-9023 for questions.
New Madell PX3700 automatic pick and place machine
* Placement of 0402 -20 mil pitch- standard (15 mil, 12 mil optional)
* Fully programmable digital Z-axis and Theta rotation angles
* Video camera teaching mode or direct assembling file programming
* X and Y axis 0.0005" resolution, 0.001" positioning
* 80 feeder capacity, feeder carriers additional cost
* Fiducial recognition, panelized PCB

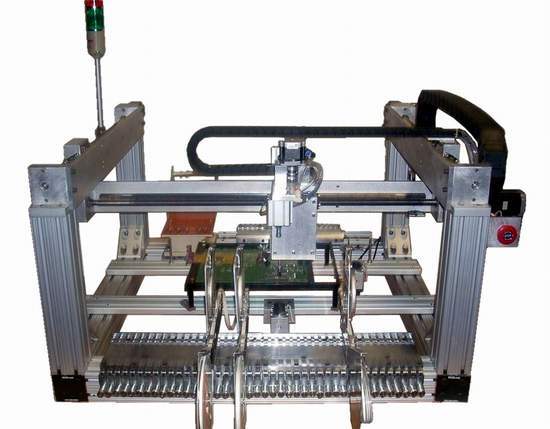

* Made with high precision linear slides on all X, Y and Z axis (the picture shows shafts)
* 12 month full factory warranty - parts & labor
* Easy to use custom software for quick programming
* 110 vac 60 hz, 750 watts electrical
* Optional tape and viberation feeders, vision system for high pitch IC's, solder paste dispensing
