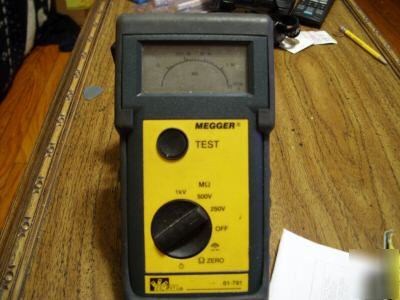

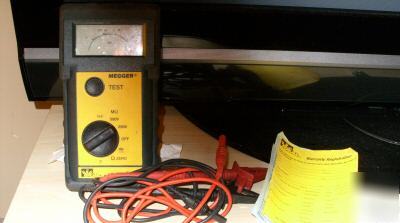

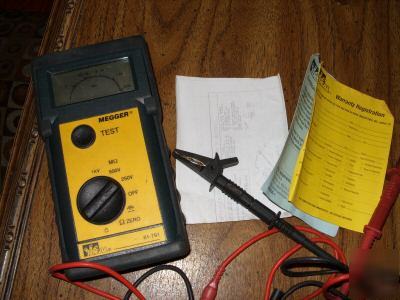

Ideal megger 61-791 insulation tester
This Megger is in great shape and was only used for 4 months!
PLEASE READ BELOW FOR ITEM SPECS.
* Test voltage: 250V/500V/1000V
* Test inhibition occurs above 25V
* Continuity with ohms/200mA
-0% + 30% (over full operating temperature) into 0 to 1mA load
0,01MΩ - 999MΩ(Digital)0,1MΩ - ∞(Analog)
Typically 2V pk to pk at 20kHz (at 1mA load)
<10% error with 100μA RMS (0,2MΩ - %infin;)
<3% error with 1V RMS(0.2 - 50 Omega;)
3 digit L.C.D. Maximum reading 999
Operates after 5 minutes of inactivity by the instrument in Continuity position and 12 minutes in Insulation position. Beep notes pre-empt auto shut off. The instrument can be switched back on by pressing the test button, or by selecting ‘OFF‘ and then the required position.
25V - 450V a.c. 50/60 Hz ± 2% ±3 digits 450V - 600V a.c. 50/60 Hz ± 3% d.c. - unspecified
6 x 1,5V cells IEC LR6 type only
500 mA (F) H.B.C.10 kA min (32mm x 6mm)
