New K2 cnc router, cnc routers - 14X14X3Z.

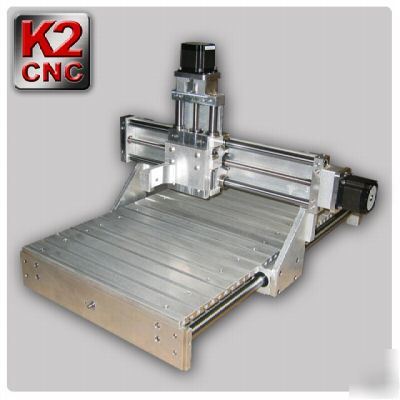

NEW - KT-1414-06 (Shaft linear motion CNC router)
+ KT-1414 Frame (Shaft linear motion), + leadscrews .100" pitch and Kerk anti-backlash nut- Retails $1150
+ Mount choices: Porter Cable 892, Bosch Colt trimmer, Porter Cable 7310 only (we recommend the PC892) - Retails $45.95
+ Home limit switches. Usw these to home the machine.
+ Settings for Mach 2 or Mach 3 with K2 machine profile CD/email and settings for gecko drives (Does NOT include full version of Mach 3 software with license)
+ K2 will not remove items from the machine to machine it a lesser priced machine.
+ 3 Stepper Nema 23 motor (275 oz/in), .25 inch diameter coupler, wires and nema mounts.
+ Wires to esitemated 24 inches
+ Mach 2 or Mach 3 with K2 profile CD and settings for gecko drives $199
+ Spindle Router - Starts at $220
+ CAD software - Starts at $700
+ CAM software - Starts at $995
+ Computer - Starts at $400-$600
+ Table Top with T-slots (2 inches apart, uses 1/4-20 nuts and screws) - Retails $195
Hard wood, MDF, Maple, Bolsa, Corian, Circuit Board, Hard Wood, Plastic, Delran, PVC, Sheet Aluminum.
3 inch of travel. Special misting, tools, proper feed rate, and knowledge of cutting aluminum required.
Check out K2 website. Click Here
Stronger steppers on the Z axis provide plugging power.
Nema 23 size motor mounts on all axes
Nema 23 size motor mounts on all axes
KERK Brand Anti-Backlash Nuts on all axis
-0.1 pitch lead screws. Standard (Feed rate of 150 inch per minute)
Direct drive coupling /w 2000 full steps/in. (on 1.8 degree stepper)
-Made of 6061 Aluminum and Delran.
4 linear ball bearings on each axes
NOT INCLUDED - Spindles that are availble thru K2
Click here for more info on routers.
* PC 892 - Max .50 inch endmills. (Recommended on this machine)
* PC 892 - Max .50 inch endmills. (Recommended on this machine)
Included - Stepper Controller Standard 3 Axis Standard.
Geckodrive G320 stepper controller
Wired for Step/Dir signals from Printer/Parallel Port
Fully enclosed control box and pre wired for Parallel Interface
110 (std.) or 220 (request) watts power supply. 24VDC unregulated (~30V) 8 Amps.
5 watt power input wire from 1 computer USB port.
Enable button - Power Cord - Fuse - (E-Stop or remote off switch. )
Works with Mach 2 Controller software.
DA300 collet holder. This allows you to hold your small bits that are smaller than 1/4.
Warranty Policy: 1 Year on all parts that are defective.
Satisfaction Guarantee Policy: 15 Days to return machine. Motors and controller can be used but not damaged. 100% Money Back on machine, motors and controller.
Assembly: Some assembly required. Due to the every changing modifications to improve all machines, Some assembly of all machines may be by phone or email only. Documentation is currently not available.
