Todd products MBS15-2.8 15-volt linear power supply

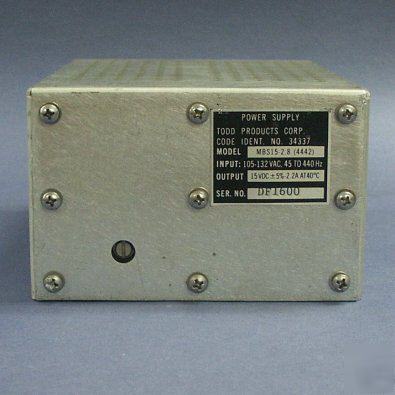

Used Todd Products MBS15-2.8 Linear Regulated Modular Power Supply. Input 105-132V 55-65HZ. Output 15.0 VDC with 5% Adjustment at 2.2 Amps at up to 40C. This power supply was built as a replacement for the Lambda LM B15 supply, when the Lambdas became obsolete. The case is aluminum rather than the Lambda steel. Otherwise, it's the same size, has the same specs, all the same mounting holes, even the provision for mounting an external Lambda overvoltage protection module. The voltage adjustment isn't in exactly the same place; it's been moved down about 1-1/2". More information on this power supply (as the Lambda LM B15 it replaced) can be found at : http:// /ftp/catalog/lm_fall85.pdf
This power supply has been checked for functionality. We do not guarantee its suitability for any particular purpose or application. This unit is 3-1/8" high by 5" wide by 6-1/2" deep (7" including the terminal block). It weighs just under 5-1/4 pounds (a couple ounces less than the Lambda probably because the case is aluminum).
There is adhesive residue on most of these supplies; otherwise they're pretty clean.
