16" SURFACE GRINDER, Kent KGS-406AHD PROGRAMM
16" SURFACE GRINDER, Kent KGS-406AHD PROGRAMM

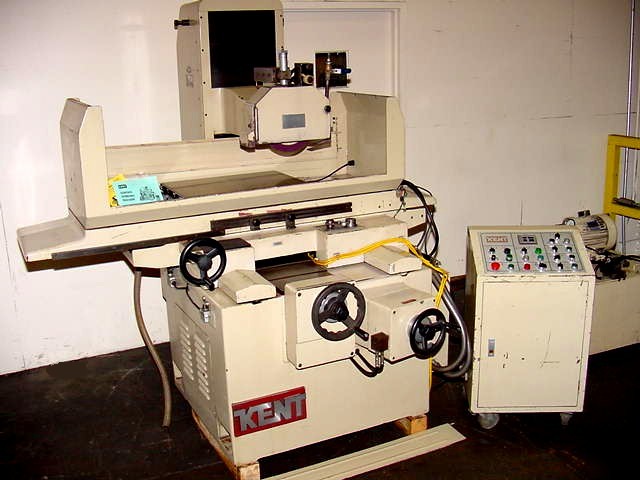

16" X 24" KENT SURFACE GRINDER
W/PROGRAMMABLE ELECTRONIC AUTOMATIC DOWNFEED
MODEL: KGS-406AHD S/N: 860455-2 NEW: 1986
MAX. GRINDING CAPACITY ..................... 16" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ............... 15"
LONGITUDINAL TABLE TRAVEL ................... 28- 1/2"
CROSS TRAVEL .............................. 17- 11/16"
VARIABLE TABLE SPEED, HYDRAULIC ....... 13' TO 73' FPM
AUTOMATIC CROSSFEED INCREMENT .......... 0.02" TO 0.5"
RAPID CROSS TRAVERSE RATE .................... 60" IPM
CROSSFEED HANDWHEEL PER GRADUATION ............ 0.001"
PER REVOLUTION ............. .................... 0.2"
AUTO DOWN FEED INCREMENT (6 STEPS) ... 0.0002" - .0016"
RAPID VERTICAL POSITIONING RATE ............... 6" IPM
SPINDLE MOTOR .................................. 3 H.P.
STANDARD GRINDING WHEEL ............. 12"D X 1.5" X 5"
APPROX. WEIGHT ............................ 6,250 LBS.
APPROX. DIMENSIONS .................. 98" X 61" X 74"H
SEPERATE ELECTRONIC CONTROL CONSOLE
ELECTRONIC PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
W/DIGITAL READOUT DISPLAY FOR VERTICAL AXIS
SPARKOUT (1 TO 9 PASSES)W/AUTO WHEEL RETRACTION
POWER RAPID WHEELHEAD POSITIONING
15.7" X 23.6" "KANETSU" STD. POLE ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
OVER-THE-WHEEL DRESSER w/MICROMETER ADJUSTMENT
** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE ***
Machine Location: HARRISON, NJ
