Tos SN71-c, 28" x 160" cc gap bed engine lathe, L997

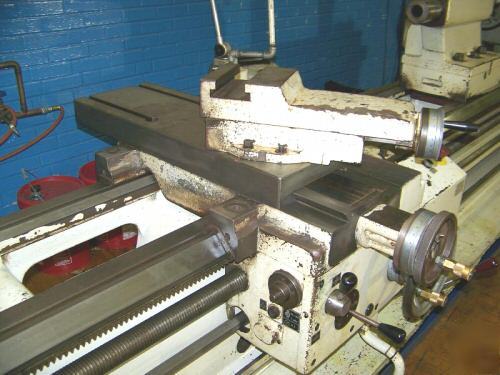

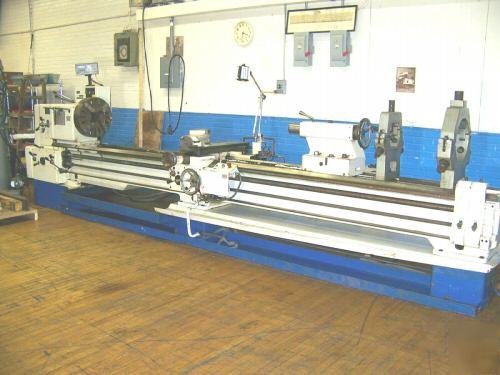

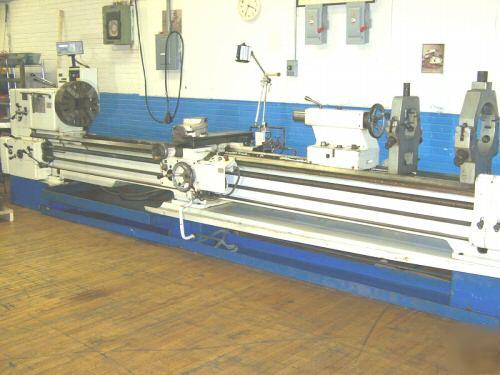

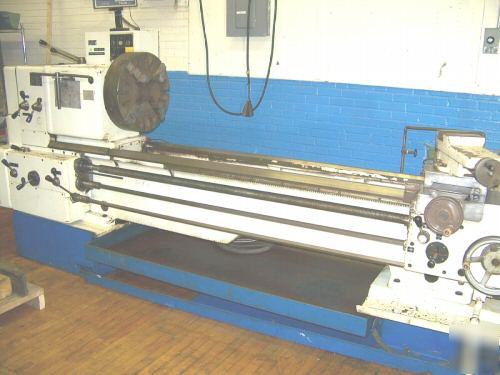

1 - (used) TOS TRENCIN Model SN71-C, 28" x 160" centers gap bed engine lathe, new 1997. Machine swings 37.5 inches in the removable gap x 15.250" from the spindle nose. Center distance is 160". There are (16) spindle speeds 10 to 1000 RPM. The spindle is a D1-8 camlock. The spindle hole is 3". The feed/thread box is Inch/Metric. Inch threads are 1-80 TPI, 0.5 to 4.0 mm. Feeds are .002 to .242 IPR longitudinal & .001 to .121 IPR for cross travel. Leadscrew is 1-7/8" x 4 TPI. The carriage is arranged with rapid traverse. The tailstock is a MT 5. The clutched headstock is driven by a 15 HP 220-3-60 AC motor. All motors and controls are included. The machine is equipped with a 20" 4'-jaw independent chuck, 7" capacity plain steady rest, 11" capacity roller steady rest, coolant system, and TRAK T-102 2-axis digital readout system. The machine runs smoothly and looks to be in very good condition. It can be inspected under power in our warehouse. If you wish to receive additional photos or have any questions, please email us ****@bellsouth.net or call (***)-825-1511. Please be sure to provide your email address to receive photos. Thank you for looking. Jon Hebert
