> 74F1056 octal schottky diode array soic-16 smd (15PCS)

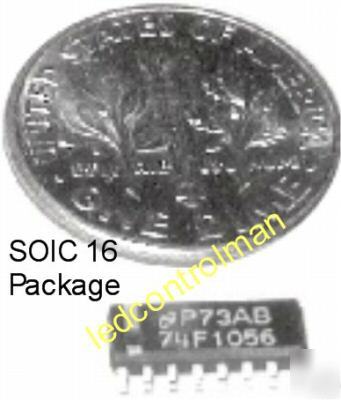

74F1056 octal schottky diode array soic-16 smd (15PCS)
74F1056 8-Bit Schottky Barrier Diode Array
(Datasheet Link: http://pdf1.alldatasheet.com/datasheet-pdf/view/50278/FAIRCHILD/74F1056SC.html )
74F1056 8-Bit Schottky Barrier Diode Array General Description The 74F1056 is an 8-bit Schottky barrier diode array designed to be employed as termination on the inputs to memory bus lines or CLOCK lines. This device is designed to suppress negative transients caused by line reflections, switching noise and crosstalk. Features s 8-Bit array structure designed to suppress negative transients s Guaranteed ESD protection (HBM) in excess of 4 kV s Common anode shared by all eight diodes s Broadside pinout for ease of bus routing
