Westwind air bearing coating spindle bell turbine D1180

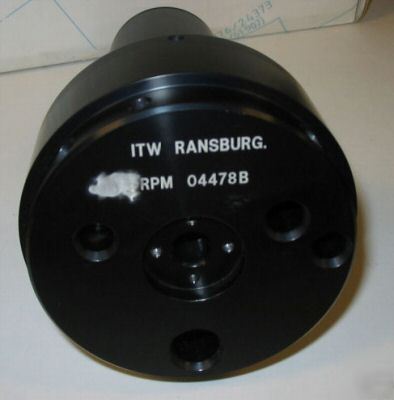

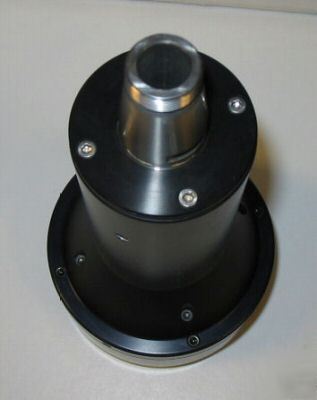

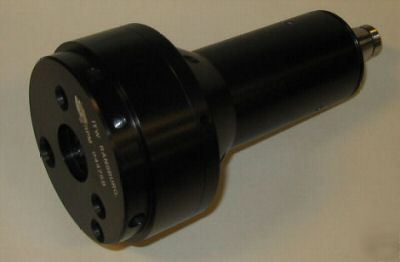

Westwind Air-Bearing Coating Spindle, ITW Ransburg RPM 04478B

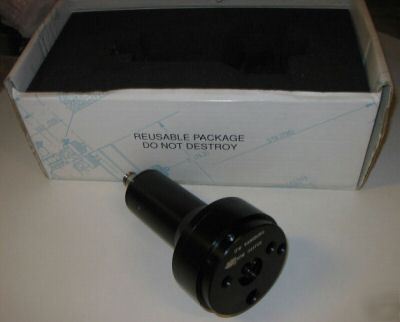

* Model No. D1180-09 this item looks new but we don't have the box so we listed as used.
* Dimensions: 8" long x 3.75" diameter at widest part
* Speed Range (rpm) (continuous): 5,000-40,000
* Bell Max Diameter (mm): 60-70
* Spindle Mass (w/o bell) (kg): 2.2
* Max Body Diameter (mm): 98.4
* Bearing Air Supply Pressure (kg/cm^2): 5.6
* Bearing Air Flow (NL/min): 78
* Turbine Performance/Air Flow (NL/min): 350
* At 4,000 rpm, 0.3l/min Paint Flow/Air Pressure (kg/cm^3): 2.2
* Integrated Shaping Air Feed: No
* Application Mounting: Fixed or Robotic
Advantages of air bearing spindles for coating applications
Low turbine air consumption using industry standard air pressure for economic operation
Suitable for robotic arm applications due to low mass and small footprint
High reliability minimizing down time costs
Long lifetime due to non-contacting air bearings and resistance to intake of external contaminants
Suitable for water-borne and high solid material applications
Fast, solid acceleration/braking for maximum productivity
This item appears to be new, however we have listed as used because we do not have the box every item we sell comes with a 30 day no questions asked guaranteed.
