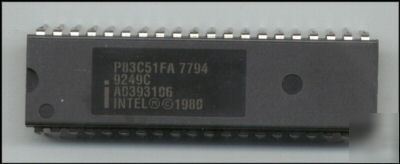

83C51 / P83C51FA / intel 8-bit microcontroller
Now over 1,500 items in our Store!
Extended Automotive Temperature Rangen(b40§C to a125§C Ambient)
High Performance CHMOS Process
Three 16-Bit Timer/Counters -Timer 2 is an Up/Down Timer/Counter
Programmable Counter Array with:
Programmable Serial Channel with:
-Automatic Address Recognition
TTL and CMOS Compatible Logic Levels
64K External Program Memory Space
64K External Data Memory Space
MCSÉ 51 Microcontroller Fully Compatible Instruction Set
Power Saving Idle and Power DownModes
ONCE (On-Circuit Emulation) Mode
PROGRAM MEMORY: Up to 8 Kbytes of the program memory can reside in the on-chip ROM. In addition the device can address up to 64K of program memory external to the chip.
DATA MEMORY: This microcontroller has a 256 x 8 on-chip RAM. In addition it can address up to 64 Kbytes of external data memory.
The Intel 80C51FA/83C51FA is a single-chip control oriented microcontroller which is fabricated on Intel's CHMOS III (83C51FA) ROM technology. For the remainder of this datasheet references to the ROMless(80C51FA) and ROM (83C51FA) versions will be denoted as 83C51FA. Being a member of the MCS
É 51 microcontroller family, the 83C51FA uses the same powerful instruction set, has the same architecture, and is pin-for-pin compatible with the existing MCS 51 microcontroller products. The 83C51FA is an enhanced version of the 87C51. It's added features make it an even more powerful microcontroller for applications that require Pulse Width Modulation, High Speed I/O, and up/down counting capabilities such as brake and traction control. It also has a more versatile serial channel that facilitates multi-processor communications.
