Eclipse magnetic vblock in case used but work well

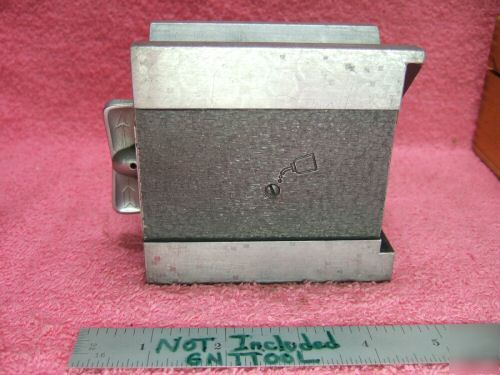

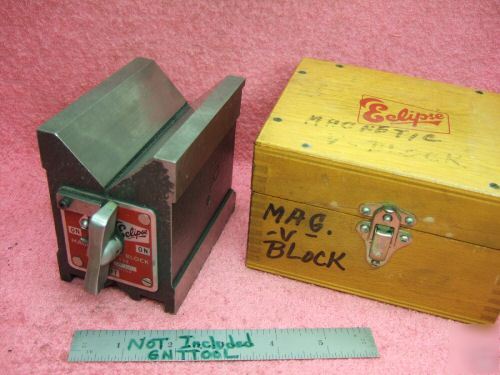

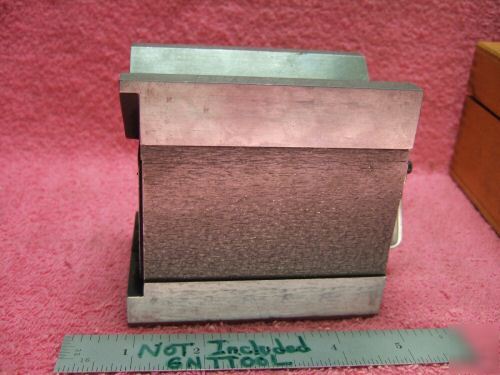

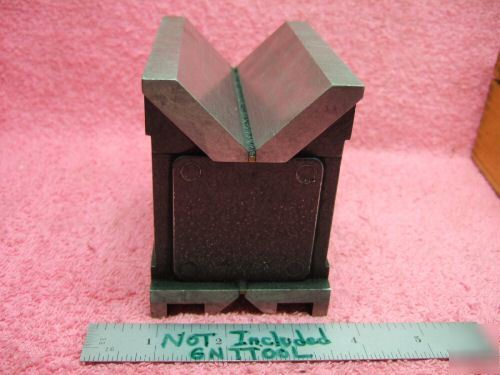

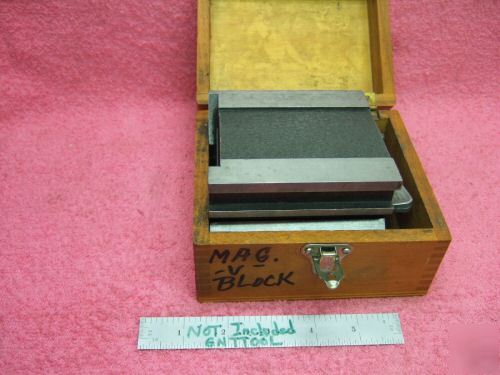

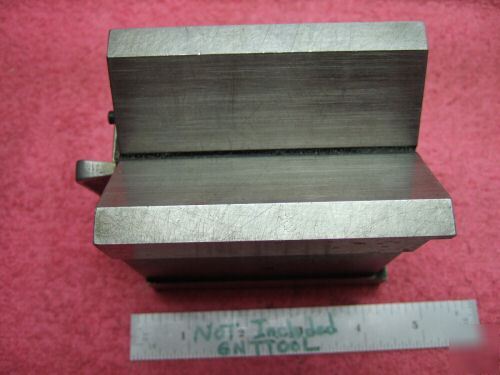

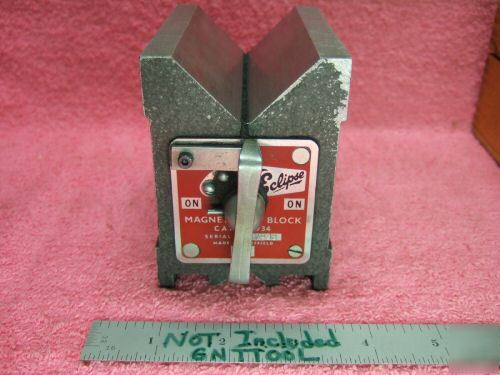

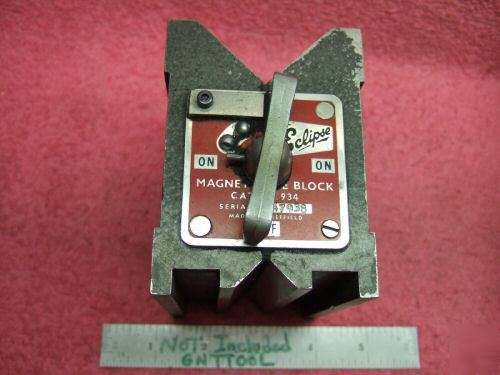

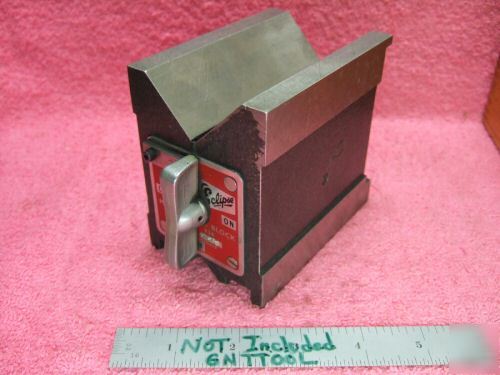

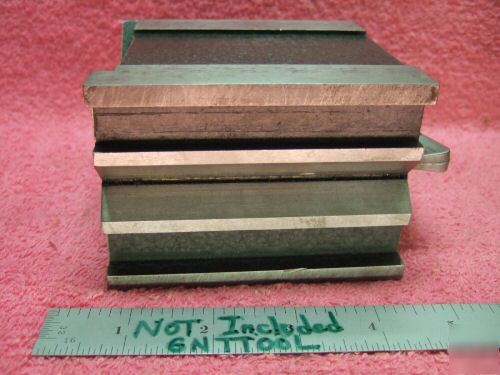

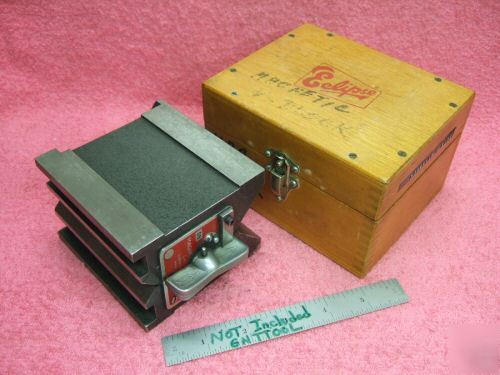

ECLIPSE E934 MP MAGNETIC VBLOCK IN WOODEN CASE AS SHOWN. VBLOCK MEASURES 2.76" WIDE x 4.02" LONG AND IS 3.75" TALL WITH BOTTOM VEE RECESSED .10" DEEP AS SHOWN IN PICS. BLOCK HAS A VEE THAT IS 1.94" WIDE ON TOP AND BOTTOM VEE IS .75" OR 3/4" APPX. AS SHOWN. CURRENT LIST AT NEWMAN TOOLS FOR THESE BLOCKS WHEN NEW IS $1086.98!!!!! SAVE SOME $$$$ HERE ON A GOOD USED MAGNETIC VBLOCK!
The Magnetic Vee Block will hold cylindrical workpieces for grinding. It will hold both itself and the workpiece on any flat ferrous surface, including a permanent magnet chuck (without energising the chuck). There are two vees. The smaller model is intended for workpieces up to 20mm in diameter and the larger model is intended for workpieces up to 65mm in diameter. The vees and faces are energised or de-energised simultaneously.
It is sometimes advantageous to use two Magnetic Vee Blocks together (matched pairs are available).
Note: Not suitable for the rotation of workpieces for inspection.
CHECK OUR STORE FOR MANY MORE NICE HARD TO FIND TOOLMAKER ITEMS,INCLUDING HERMANN SCHMIDT RADIUS DRESSERS, J&S RADIUS DRESSERS, VISES AND PARALLEL SETS, MATCHED PAIRS OF ANGLE PLATES,VISES, VBLOCKS AND MANY OTHER HARD TO LOCATE ITEMS.
Questions? Contact us ****@windstream.net
