Technica zsm-5100 center hole grinder

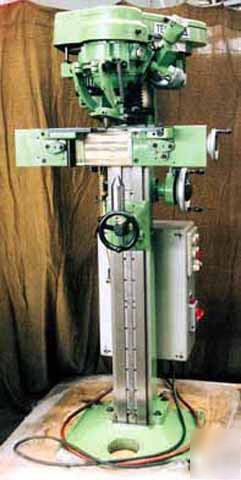

TECHNICA ZSM-5100 CENTER HOLE GRINDER
S/N: J20284/962028482 New: 1982
Motor Driven With 1/3 HP, 3 Phase, 60 Cycle, 480 Volt Grinding Spindle Motor. ¼ HP, 3 Phase, 60 Cycle Quill Drive Motor. Complete Electrical Controls.
Hollow Quill Grinding Spindle. Swing Down Grinding Cone Dressing Device. Rapid And Fine Handwheel Adjustment Of Work. Adjustable Height Tailstock with Center. With Work Support. Precision Vise. Air Lubricator. Swing Down Upper Center. Dust Collector. Work Clamping Fixture for Repositioning Center Holes.
Workpiece Diameter .315 - 4.92"
Cone Angle to Ground Center Holes 60"
Diameter of Center Holes Ground .079-1.97"
Grinding Spindle Speeds (3) 45000/22500/13000 RPM
Hollow Quill Speed (Planetary Axis) 400 RPM
Travel of Grinding Cone .030 - .197"
