Advanced energy pe power pack ac plasma power supply

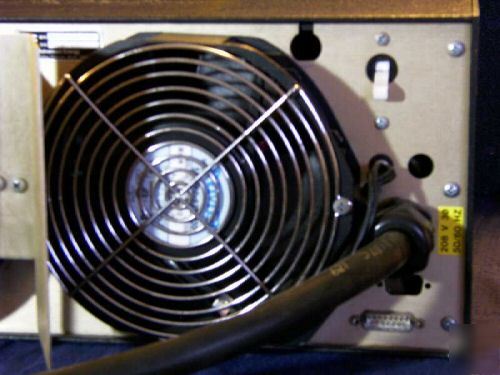

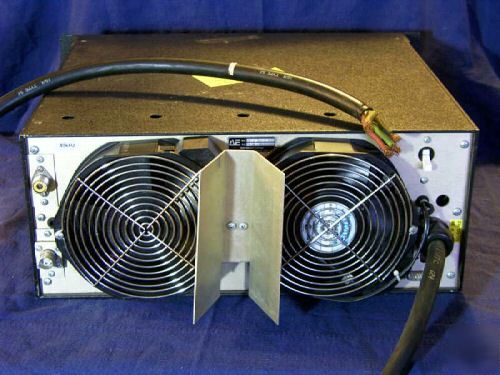

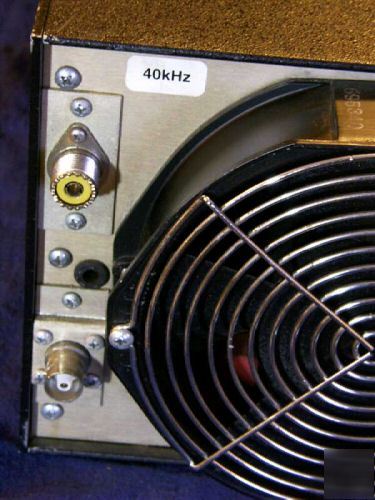

This is a 5 kW slave drive module designed to be used in conjunction with a master PE power supply for a total 10 kW power output. The floating output from this dual output source is 40 kHz, via a UHF and C-type coaxial connectors. The input is 208VAC 3 phase. Countrol is via a 15-pin male d-sub connector. There are 4- 1.25 kW inverter modules that are run in parallel for the combined 5kw output. These are the same modules that are used in the PE 1k and 2.5kw sources, so this unit may be used to eaisly fix other units as well.

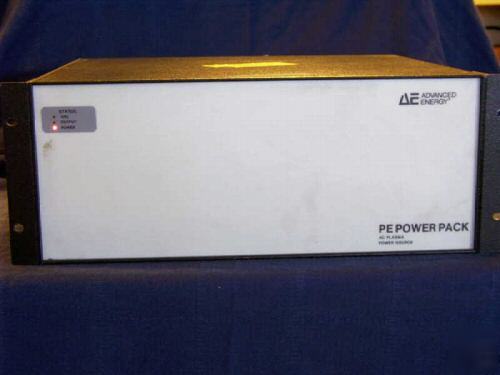

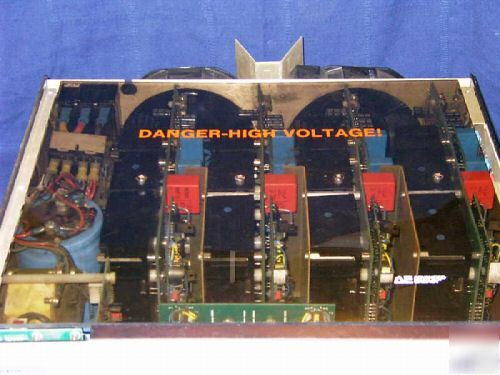

This unit has been tested to power up as seen in the first picture. The power light illuminates and both fans turn on. I took the top cover off as seen in the pictures, and the inside looks to be in good condition with typical dust accumulations built up in a air cooled power supply.
