Asahi-baird 5-51 transfer press

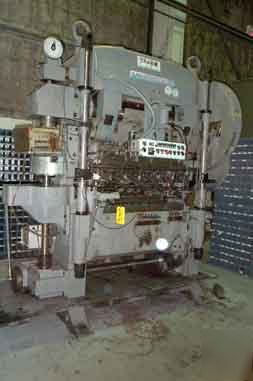

ASAHI-BAIRD MODEL 5-51 MECHANICAL TRANSFER PRESS*
Capacity: 75 Ton
Stroke: 3"
Distance Bed to Step in Ram - SD: 18"
Shut Heights (Bed to Bottom of Ram - SD): 13"
Upper & Lower Roll Diameter: 8-1/2"
Rolls Pin Distance (C.C.): 17-3/4"
Number of Stations: 11
Speed (Variable): 25 - 100 SPM
Air Clutch and Brake with Selector Controls
Cam Operated, Solid Ram
Cast Iron Frame
EQUIPPED WITH:
(6 Station) Punch Stripping And Stripper Relief Mechanism
Cross Motion Mechanism
(9 Levers) Upper Knockout Attachment
Blanking Station
Back Mounted Single Roll Feeder
Stroke Position Indicator
Automatic Lubrication System
10 HP AC Vari-Speed Main Drive Motor
Electrical Controls
Approximate Overall Dimensions: 120" L-R x 52" F-B x 120" H
Approximate Weight: 30,000 Lbs.
Serial Number: 870 (New 1979)
P2 F.O.B. Elk Grove, IL - $ 99,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
Email us at ****@PerfectionMachinery.com
Call our Sales Staff at 1-(***)-254-8808
Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes.
Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power.
