Hp agilent 89640A 89640S 89600S vector signal analyzer
Agilent / HP 89600S / 89640A VXI Vector Signal Analyzer System, 2.7 GHz
* Description: The Agilent 89640A is a modular, pre-configured hardware system for VIX based vector signal analysis. The 89640A features a frequency range up to 2.7 GHz with DC to 36 MHz of analysis bandwidth. Other features include:
* <-157 dBm/Hz sensitivity
* Add a second channel for I/Q baseband and RF coverage in one box
* DSP-based spectrum, vector, demodulation, and RF-scope analysis tools
* Full access to all of the 89600 VSA software signal analysis capabilities
* Connects to your PC via IEEE 1394 "Firewire" interface
* Easily substitute a mainframe, include other VXI modules, or add a baseband and RF VSA systems to a mainframe
* High resolution spectrum analysis
* Advanced general purpose and standard-specific modulation analysis options
* Highest quality 2-channel MIMO measurements for WLAN or WiMAXâ„¢
* An extensive suite of time, frequency, and modulation -domain analysis tools for burst analysis
* Compatible with more than 30 Agilent signal analyzers, scopes, and logic analyzers
* Dynamic links to ADS and Simulink simulations to analyze your signals hardware even exists
* Cosmetic Condition: Very Good
* Working Condition: Tested Good

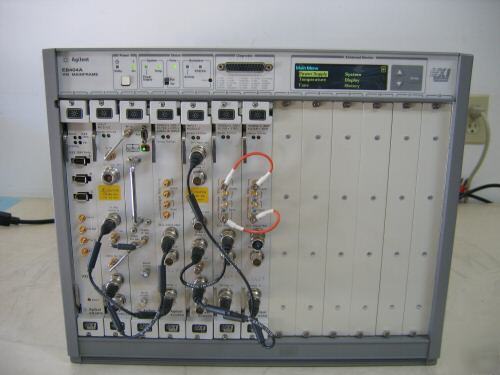

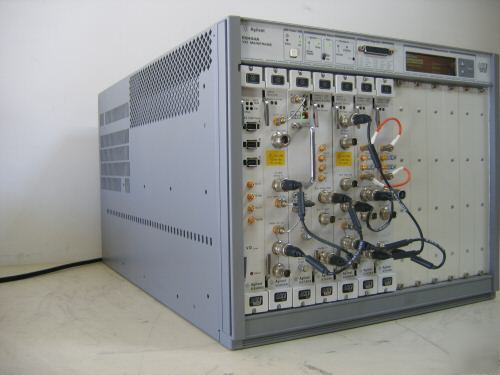

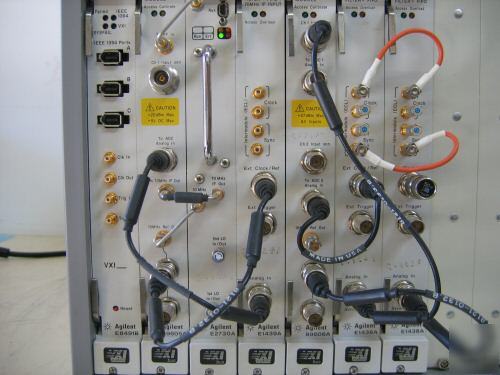

* Other Comments / Notes: This system consists of the following:

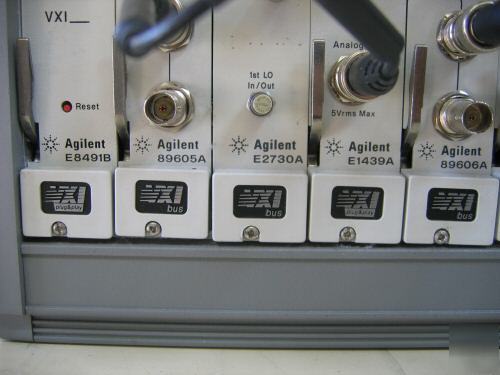

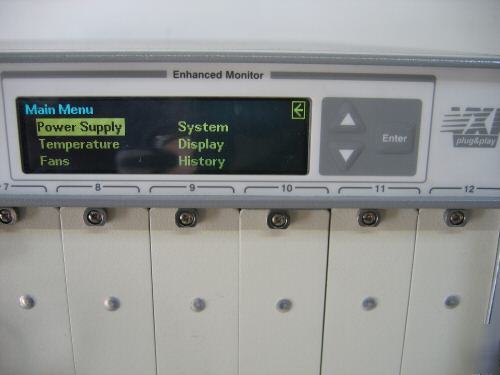

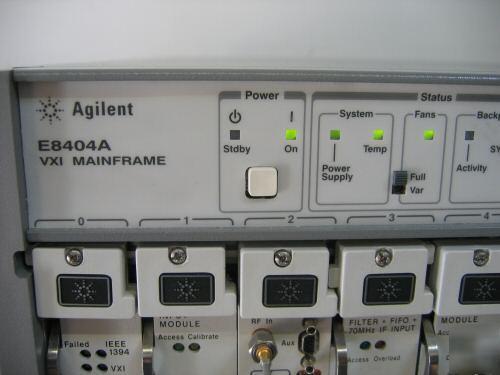

* Agilent E8404A: 13-slot C-size VXI Mainframe, 1000W PS, Enhanced monitor, color graphic display
* Agilent E8491B: 1-slot, message-based VXI module, Provides a direct connection from your PC to a VXI mainframe via a IEEE-1394 bus (FireWire)
* Agilent 89605A: 1-slot VXI Input Module DC-39MHz
* Agilent E2730A: 1-slot VXI RF Tuner Module, 20 MHz - 2.7 GHz
* Agilent E1439A w/ option 288: 1-slot VXI module, 95 MSa/s DSP, Memory and 70 MHz IF Output (w/ 288 MB Memory Option). Features & specs include:
* 36 MHz input bandwidth centered at 70 MHz
* -90 dBfs spurious-free dynamic range
* Anti-alias filter and signal conditioning
* 18MB RAM FIFO memory (expandable to 1.2 GB)
* 2.5 Gigabit/second FPDP (E1439B)
* Local bus and VXIbus outputs
* Multi-channel compatible
* Agilent 89606A: 1-slot VXI Baseband Input Module
* (2X) Agilent E1438A w/ option 288: 1-slot VXI Module, 100 MSa/s Digitizer with DSP and Memory (w/ 288 MB Memory Option).
* The Agilent E1438A is ideal for applications in signal acquisition and analysis, high resolution ATE and radar testing. This single-channel 100 MSa/s digitizer combines exceptional spurious-free dynamic range with alias-protected signal conditioning, center frequency tunable digital filtering, and a large signal capture memory, in a single-wide C-size VXI module. Other features and specifications include:
* 0 - 40 MHz input bandwidth
* -90 dBfs spurious-free dynamic range
* Anti-alias filter and signal conditioning
* Digital decimation filters with tunable center frequency
* 18MB RAM FIFO memory (expandable to 1.2 GB)
* Local bus and VXIbus outputs
* Multi-channel compatible
* VXI plug&play compatible
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
