English wheel - power hammer dies - shrinking dies
Exclusively by Hoosier Pattern

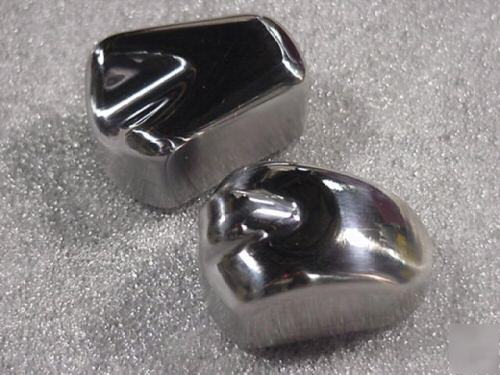

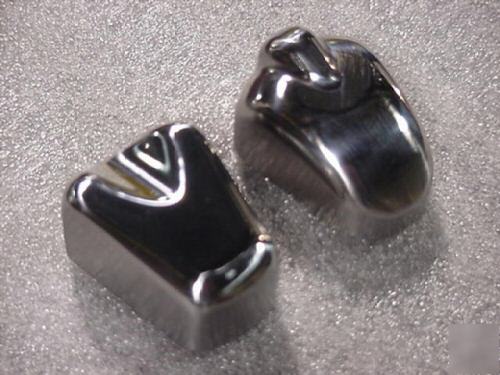

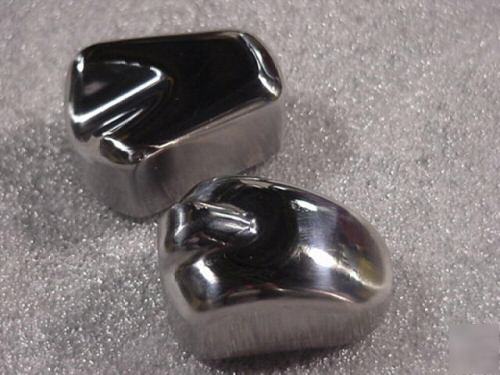

Universal Pie Shaped Shrinking Dies
I have a few different PullMax Shanks Available for $75.00 a pair. PullMax P-3, P-5, P-6, P-9, P200, P201 and P21's are in Stock. These Shanks Bolt on using the 5/8's pocket in the bottom of the Dies, the Shanks are Black Oxided.
Our Exclusive Pie Shape Gives more Clearance than those Square Sets.
* Polished to a mirror smooth finish these dies require no preparation to start shrinking sheet metal.
* This set is Mild at 22 Hrc, if your Alignment is off you can easily relieve this set.

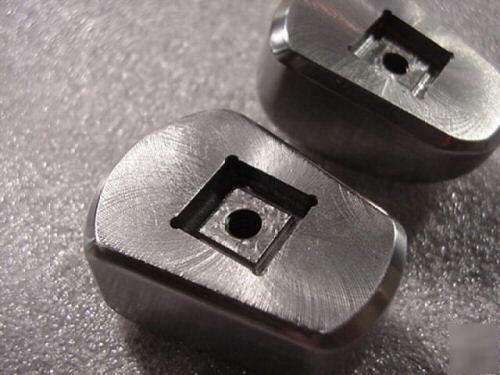

* These dies have No Shanks(make your Own) 5/8's Square Pocket in Underside with 1/4-20 tapped hole.
* Our Shrinking Dies are Tapered to allow Very High Crown to pass thru without Flattening your Panels.
* All edges have Nice radius'
Alignment is Critical on Shrinking Dies, Using the Square Pocket we cut in the Bottom makes Orientation Simple!

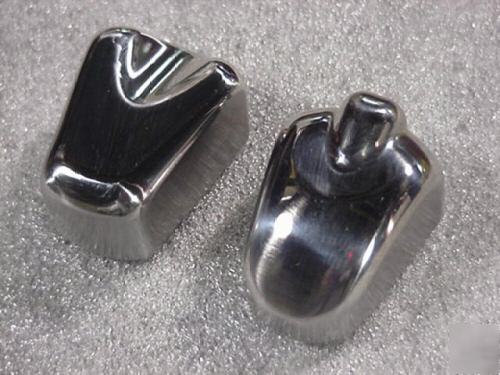

Not Reccomended in Planishing Hammers. These Dies Will Only Shrink on a Fixed Stroke Machine. Ideally you need to set a Gap between the Dies Sweet Spot (at the Base of the Machined Pin) a couple of thousandths bigger than the Metal your Shrinking If the Gap is set to tight these Dies Will Stretch Not Shrink. The Gap needs to be a bit thicker than the Material because as you Shrink the Metal it becomes thicker.
Look closely at the Pictures, as they say "A Picture says a thousand words".
© Copyright 1999 - 2007, All Rights Reserved
If you have questions regarding anything to do with this Tool please don’t hesitate to ask, e-mail ****@hoosierpattern.com

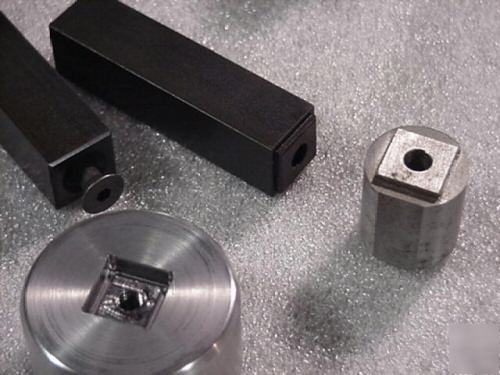

I added a Picture Showing the Shank we use to Bolt the Die Blank to. Also Shown in the Picture are a Set of PullMax ¾" Shanks that have the Square .625 Dimension Machined on them. Also you can See the Flathead Screw we use to Attach the Shank to the Die. Machining the Square Boss in the Bottom of the Die Guarantees the Orientation.
