Speco cvc-265PIR b/w camera in non-operating pir

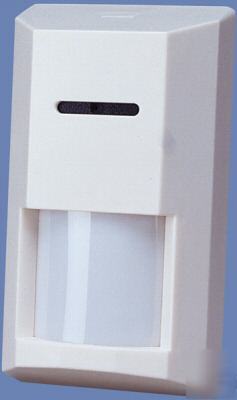

MODEL# CVC-265PIR B/W CAMERA IN NON-OPERATING PIR
1/3" B/W CCD camera has a 0.5 lux with 480 line resolution. It is encased in a non-working PIR housing . It features a 3.6mm wide angle pinhole lens and a built-in electronic shutter. A working PIR housing model can be found under model number CVC-565PIR. A 12V DC power supply is included
* Dimensions 2"L x 2.75"W x 4.75"H
* Electronic Shutter auto 1/50-1/100,000 seconds
* Housing ABS plastic non-working PIR housing
* Image Device 1/3" B/W CCD image sensor
* Minimum Illumination 0.5 lux F 1.5
* Number of Pixels 512 (H) x 492 (V) picture elements
* Operating Temperature 14º F - 122º F
* Outputs Video - RCA with BNC adapter, power - DC jack
* Power Supply regulated 12V DC power supply included (UL and CSA listed)
* Scanning Frequency Hor. 15.75 kHz Vert. 60 Hz
* Scanning System EIA standard 525 TV lines 60 fields/sec
* Video Output Level 1.0 Vp-p 75 ohm
* Video S/N Ratio greater than 46 dB
*WE ARE NOT AUTHORIZED DEALERS OF THESE PRODUCTS AND ANY ORIGINAL WARRANTY CANNOT BE GUARANTEED* WE ARE LIQUIDATORS.
WE HAVE MANY MANUFACTURERS CONTROL UNITS,
ANY OTHER COOL UPGRADES THAT CAN INCREASE THE CONVENIENCE, PERFORMANCE OR EASE
OF USE OF YOUR SECURITY SYSTEM!!
*PLEASE SEARCH OUR STORE TO SEE MORE SECURITY PARTS*
Go to fullsize imageGo to fullsize image
WE ARE NOT SECURITY SYSTEM EXPERTS. WE ARE LIQUIDATORS WHO HAVE PURCHASED A LARGE QUANTITY OF SECURITY SYSTEMS AND ACCESSORIES.
WE HAVE PROVIDED AS MUCH INFORMATION AS WE CAN. WE WILL CERTAINLY NOT BE HELPFUL WITH ANY INSTALLATION QUESTIONS OR PROBLEMS.
WE HAVE DONE THE ABSOLUTE BEST WE CAN TO PROPERLY REPRESENT OUR
THIS ONLY APPLIES IF THE ITEMS CAN BE PLACED IN ONE BOX, IF YOU HAVE A QUESTION REGARDING THIS, PLEASE CONTACT US.
THIS ONLY APPLIES IF THE ITEMS CAN BE PLACED IN ONE BOX, IF YOU HAVE A QUESTION REGARDING THIS, PLEASE CONTACT US.
If you have any questions, please contact us at your
convenience: IDEALTRADE@AOL.COM
Thanks for your consideration!! Good Luck!
View and search all the items in my picture gallery
