1500 gal ceramic coatings glass lined reactor, - 18564

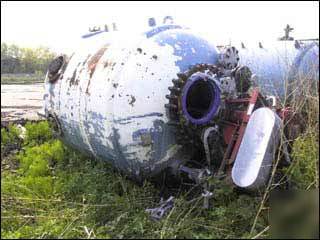

"ONE (1) Used 1500 gallon Ceramic Coatings Glass Lined Reactor, approx. 78" diameter x 68" straight side, dished top and bottom, rated 100 PSI full vacuum internal @ 650 degrees F, fully jacketed for 90 PSI @ 350 degrees F, CR68H, glass steel, hastelloy 3 blade retreat curve agitatorwith Ceramic Coatings Model 5CD0 Drive, 10 H.P., 230/460 volt, explosion proof, mechanical seal with lubricator, beaver tail baffle, top manway, misc. top nozzles, Serial No. 5.30861, National Board No. 1006.
