Circuit tester & multimeter insulation piercing probes

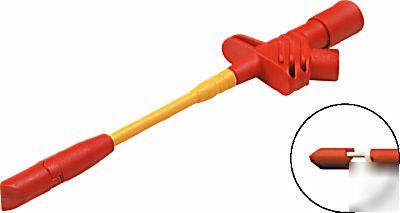

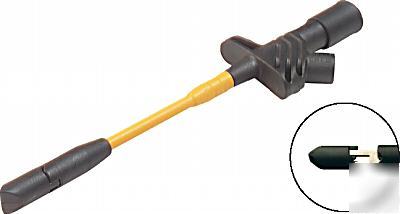

These are essential to any car mechanics, auto technicians or car audio installers electrical tool kit. They will save endless time, effort and expense in fault finding, or on new equipment installation. They allow speedy identification of electrical circuits, and cabling, locate short circuits or open-circuits, and aid multi-meter measuring or analysis This is a pair (one red and one black) of top quality Hirschmann safety clamp-type test probes consisting of: 1 off KLEPS 2700 Black, Hirschmann order code 972307100 and 1 off KLEPS 2700 Red, Hirschmann order code 972307101.

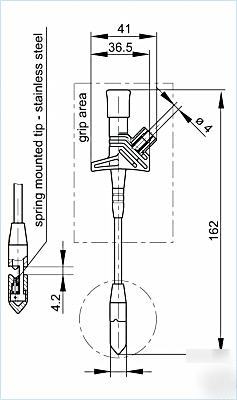

The sprung stainless steel tip can contact the conductor in insulated leads and cables with cross-sections between 0.25 mm sq. and 1.25 mm sq. (3.5 mm diameter) without the need to strip them. They pierce the insulation with a fine needle and make contact on the conducting wire allowing testing of the circuit. They are fully insulated so there is no risk of inadvertent short circuiting. When removed the wire insulation is still intact and requires no making good with insulating tape, heatshrink or sleeving. Will accept any standard 4mm diameter plug connection on measuring test leads. These are IEC 61010 IEC 1010 approved and rated at AC/DC 1000 Volt Category III. Rated current 10 Amp. Contact resistance 100 mOhm.
Ideal for fault finding on ignition and injection systems, modules, coils, motors, light circuits, instruments, sensors, fuses, relays, solenoids, alternators, car radios, DVD's, amplifiers and speakers.
These will complement any electrical test measurement tool set in a work shop or laboratory and are equally suitable for analysis and diagnostic work on radio, television, computer, stage lighting and music. Using standard 4mm test leads can be connected to any suitable multi meter, volt meter, test bulb, monitor, analyser, modulator or oscilloscope.
These are identical to those featured in RS Components under RS 1855003 which sell for over £ 19.00 a pair and Farnell Components under 859163 and 859151 at over £ 17.00 per pair. Check my other listings for test equipment. Thanks for looking
