10 x 10MM green 15000MCD leds led led's + free resistor

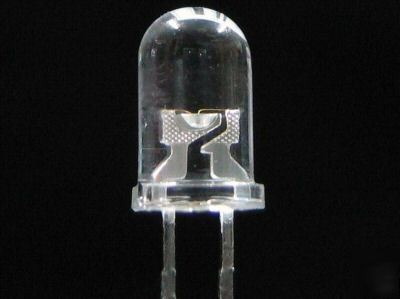

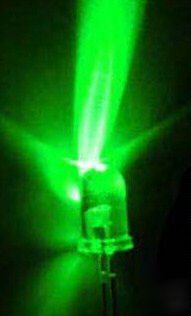

This is for a pack of 10 x 10mm Green 15000mcd LEDs
In each pack you will also recieve the same quantity of resistors to work with 12volts.
For £1.89 you get 10 x 10mm Green LEDs + Resistors
Orders made before 4pm will be sent sameday.
You pay £0.40 postage for the first item and free post is applied to additional LED packs boughts.
* Peak Wave Length (nm) : 520~525
* Forward Voltage (V) : 3.2 ~ 3.8
* Reverse Current (uA) : <=30
* Luminous Intensity Typ Iv (mcd) : Average in 15000
* Life Rating : 100,000 Hours
* Viewing Angle : 20 ~ 25 Degree
* Absolute Maximum Ratings (Ta=25°C)
* Max Power Dissipation : 80mw
* Max Continuous Forward Current : 30mA
* Max Peak Forward Current : 75mA
* Lead Soldering Temperature : 240°C (<5Sec)
* Operating Temperature Range : -25°C ~ +85°C
* Preservative Temperature Range : -30°C ~ +100°C
