9†x 35†jet vertical milling machine; power feeds

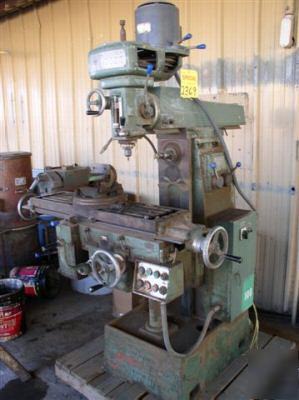

(1) Used 9†X 35†JET Vertical Milling Machine; Model#: HMV-1PFB; Serial#: 53977
Table Size………………………………… 9" x 35" T-Slotted
Longitudinal………………………………. 11" F-B nominal
Head Rotation.............................................. 45°
Head Travel................................................. 18" nominal
Spindle Travel.............................................. 3½"
Cross Travel………………………………. 22½" L-R nominal
Vertical Travel…………………………….. 16½" nominal
Feeds …..………………………………….. Power
Feed Speeds(6)............................................. 13/16 – 9 3/8 I.P.M.
Power Rapid Traverse…………………….. 80 I.P.M.
Spindle Size……………………………….. 30 I.S.C.
Speeds(6)………………………………….. 80-900 R.P.M.
Chuck Size................................................... 4½" x 5¼"
Electrical Characteristics…………………. 230/460 V.A.C.
Horizontal Auxiliary Spindle Head
Overall Dimensions: …………………………....56" L-R x 40" F-B x 77" High (est.)
Weight:……………………………………….....4,800 lbs. (est.)
For more information you can contact Charles or Danny in one of the following ways:
