Teletemp mdl 44 infared thermometer + 11/2X lobo scope
TELETEMP MDL 44S INFARED THERMOMETER + 11/2X LOBO SCOPE
THE USE OF CMOS CIRCUITRY AND CHOPPER STABILIZED AMPLIFICATION IN THE TELATEMP MODEL 44 INFRARED THERMOMETER PERMITS RAPID RESPONSE DIGITAL TEMPERATURE INFORMATION TO BE ACQUIRED RELIABLY WITHOUT THE NEED FOR PREMEASUREMENT ZERO SETTING. THE COMBINATION OF LOW POWER PORTABILITY AND THE - INSTANT ON - TOUCH SENSITIVE HANDLE ALLOW THE USER UNMATCHED EFFICIENCY IN TEMPERATURE DATA COLLECTION.
DISPLAY: A 3 1/2 DIGIT LED DISPLAY AND A SCALE ANNUNCIATOR WHICH IS DEPENDENT ON THE F/C SWITCH SETTING.
HOT SPOT: AN LED ANALOG INDICATOR WHICH BRIGHTENS PROPORTIONALLY TO INCREASE TARGET TEMPERATURE. ITS THRESHOLD IS INITIALLY SET WITH THE -BIAS- CONTROL.
F/C SWITCH: THIS SWITCH PERMITS THE OPERATOR TO SELECT FARENHEIT OR CELSIUS DISPLAY. THE SWITCH MAY BE SET WHILE OPERATING THE INSTRUMENT.
SCALE RANGE: 0 TO 1000 F OR 0 TO 600 C . SWITCH SELECTABLE.
TARGET SPOT SIZE: NOMINAL D/39 AT SPECIFIED FOCAL PLANE. (EXAMPLE: 1 INCH SPOT AT STANDARD 1 METER FOCAL DISTANCE).
FOCAL DISTANCE: 12 INCHES TO INFINITY ( 1 METER STANDARD).
SPECTRAL RESPONSE: 8-14 MICRONS

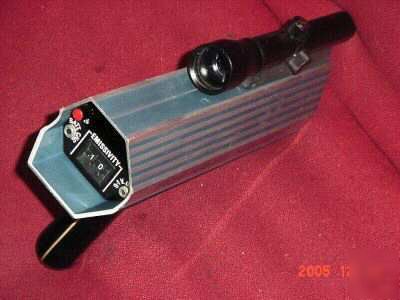

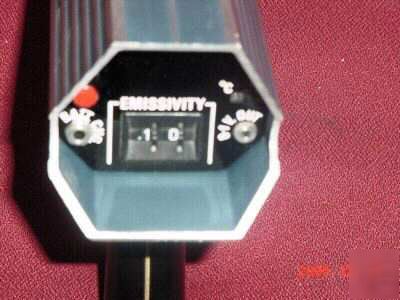

EMISSIVITY ADJUSTMENT: TWO DIGIT THUMWHEEL; .1<=<=.99
ENVIROMENT: NON- OPEREATING; 0-60 C, OPERATING; 0-50 C. 0-90% RH.

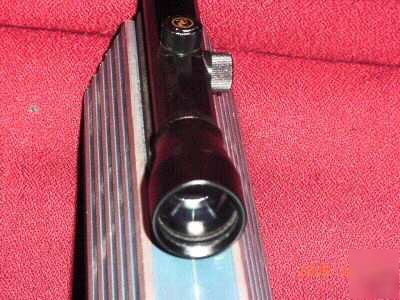

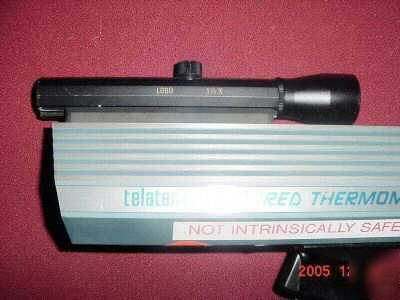

OPTIONAL SIGHTING MECHANISM: REFLEX SCOPE; RANGE FINDING LASER. THIS LOT INCLUDES LOBO SCOPE 1 1/2X.
OUTPUTS: 3 1/2 DIGIT LED DISPLAY AND 0 TO 1 VOLT DC @ 1 MV./ DEGREE
POWER SOURCE: RECHARGEABLE NI-CD BATTERIES PROVIDE A MINIMUM OD FOUR HOURS OF CONTINUOUS RUN TIME FROM AN OVERNIGHT CHARGE. THE CHARGER CAN BE USED AS A SUPPLEMENTAL POWER SOURCE FOR LONGER RUN TIMES.
LOW BATTERY INDICATION: A PERIOD (.) AFTER THE F ( OR C) ON THE DISPLAY INDICATES THAT CHARGING IS NECESSARY.
BIAS CONTROL: ADJUSTS THE THRESHOLD VALVE OF THE - HOTSPOT-
ON - OFF CONTROL: A TOUCH SENSITIVE ELECTRONIC SWITCH BUILT INTO THE GRIP.
READING HOLD: HOLDS THE LAST READOUT AS LONG AS THE TRIGGER IS DEPRESSED. ( NOT COMPATIBLE WITH THE PEAK HOLD OPTION.)
TRIPOD MOUNTING: A 1/4-20 NUT IS BUILT INTO THE BOTTOM OF THE HANDGRIP TO ALLOW MOUNTING ON A STANDARD PHOTOGRAPHIC TRIPOD.

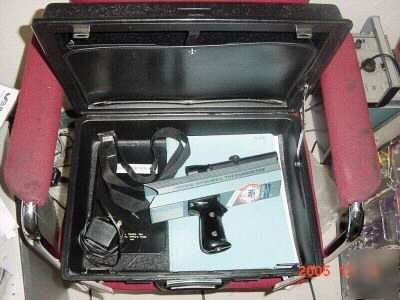

1. INFERRED THERMOMETER MODEL 44SSERIAL # 648
1. OPERATING INSRUCTIONS / MANUALS
