Kenwood 2 way radio model tk-862G-1

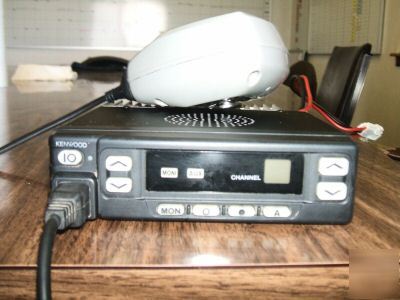

This is a used kenwood Tk-862G-1 UHF 2 way programmable radio. It is in perfect working condition. The reason we are selling it is we are upgrading to higher wattage radios. This radio has FCC and Canada number on the Dataplate. It is unlocked and ready for you to program your channels into it If you have any questions please feel free to email me and I will answer as quick as I can. The specs are as follows
VHF/UHF FM Mobile Radios TK-762G/862G
Built-in quality + a full range of advanced features = streamlined efficiency. This is the formula for success that the TK-762G/862G mobile has to offer. Compact yet extremely rugged, the TK-762G/862G is fully equipped with 8-channel capacity, wide-band switching (multi-mode) and an optional public address function (PA/HA) for more operating convenience. For the best in mobile communications, get the TK-762G/862G mobile - its performance will move you.
Wide/Narrow Channel Bandwidth Per Channel (Multi-mode)
8-channel capacity ensures plenty of room for applications today and tomorrow. Once programmed, users simply select the appropriate channel. Flexible channel group size permits organizing channels into required regional or special-use groupings.
The decoder offers a 2-tone paging pair that can be assigned to any channel (Individual Call: A, B or C tones paired in any combination; Group Call: Long A, Long B or Long C). Incoming messages are signaled via both audible and visible alerts while call alert provides two distinct short beep tone sequences to differentiate between individual and group calls. Transpond can be enabled to transmit an acknowledgement tone (long beep) that a page was received.
The TK-762G/862G mobile units are equipped with 2-tone encoding/decoding capability. When encoding or decoding transceiver communications, a specific code is available for each function.
DTMF Transpond Upon a valid DTMF paging decode, DTMF Transpond can transmit an acknowledgement code (auto dial memory No. 1) as a receipt of page. Transpond can be enabled to transmit a long beep tone as recognition that a page has been received.
Depending on the application, DTMF or 2-tone paging decode can be set to one of two squelch types. "OR" is set for receiving all voice traffic with audio muted only by the programmed QT/DQT tone/codes (radio will alert when a valid decode of a page is received). "AND" is set for muting the radio until both the programmed QT/DQT and a valid DTMF page is decoded.
Wide/narrow Channel Bandwidth Per Channel (Multi-mode)
The TK-762G and TK-862G mobiles are programmable wide/narrow channel spacing* on a per channel basis (TK-762G: 25 (30) kHz wide/12.5 (15) kHz narrow; TK-862G: 25 kHz wide/12.5 kHz narrow). The enhanced synthesizer channel step programmability accommodates channel allocations now and in the future.
*Both models operate with no less than 25 kHz wide and 12.5 kHz narrow channel bandwidth.
Coverage is provided across the most common VHF & UHF bands (see specifications). VHF: 148 ~ 174 MHz and 136 ~ 162 MHz; UHF: 450 ~ 490 MHz.
Companded Audio for improved audio clarity
PC Programmable and Cloning Capability
Data Ready Connection Port for MDT/modem Applications
Built-in QT, DQT and Two-tone Signaling
Ignition Sense Function (option)
SmarTrunk(TM) OMNI Board Compatible
140 x 40 x 145 mm (5-1/2 x 1-1/2 x 5-3/4 in.)
