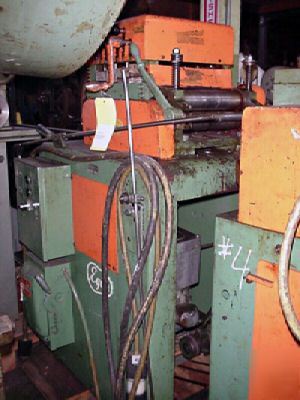

Egan model S20-810 ) 8 roll straightener / leveller
* 10" x .018" minimum - mild steel
* 10" x .105" maximum - mild steel
* Straightener rolls: (8) - 2-1/8" diametr
* One set power driven pinch rolls: 2-1/2" diameter
* Speed: 14 - 108 FPM (variable)
* Power driven lower straightening rolls (4)
* Adjustable upper straightening rolls (4)
* Dimensions: 32" x 31" x 53" high
* Estimated weight: 1500 lbs.
* Mechanical vari-speed drive
