New bench top cnc mill super X3 square col.

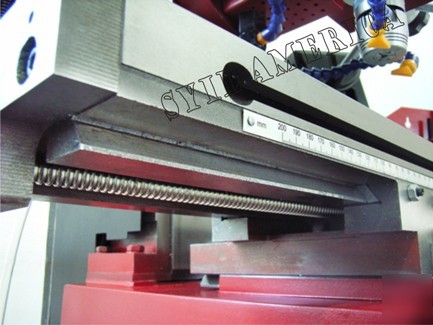

· The X, Y, Z axis's are all upgraded with precision ball screws, including two screw nuts, plane bearings and couplers. This gives it a very high localization accuracy and repeatability
· Horizontal milling capable!
· Digital depth micrometer for Z axis
· Retains drilling and tapping manual mode capabilities
* Travel 15.5” x 6.9” x 9.1” (X,Y,Z)
* Spindle Speed 80-1750,3600* (Optional Spindle upgrade)

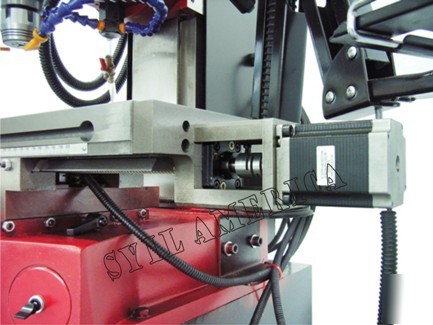

· NEMA 23 motors are used on the X and Y axis
· NEMA 34 stepper on the Z axis is within the body
· The X, Y axis steppers are covered with custom made shells to protect them from chips and shavings.
· limit switches on all axis
· Only Sold in the U.S. By Syil America
· Twin 300 watt power supplies (600 watt total)
· CNC interface board provides such functions such as MOTOR CONTROL, EMERGENCY STOP, LIMIT/TOOL ADJUST SENSORS, SPINDLE CONTROL, HALF DRIVE CURRENT, OVER-THERMAL PROTECTION, etc.
· Stepper drivers with subdivisions up to 100 gives it performance that approaches most servo systems
· Parallel compatibility for software control: MACH, KCAM4, etc.
· All the power supplies and NC control systems are all integrated to the back shell, so the machine is very compact.
· Integrated power switch for mill and NC functionality
· 3D tray for PC or tooling, with full range of motion
· Only Sold in the U.S. of A. By Syil America
· The electronics in the Back shell are cooled by a 12CM fan and should keep everything working even in the heat of summer
· All exposed wires are covered by plastic conduit
· Just plug in the provided cable to your PC parallel interface and Start Milling!
· 1 Year warranty on all electronics / 90 day warranty on machine hardware

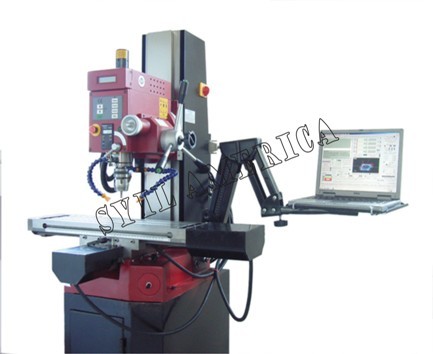

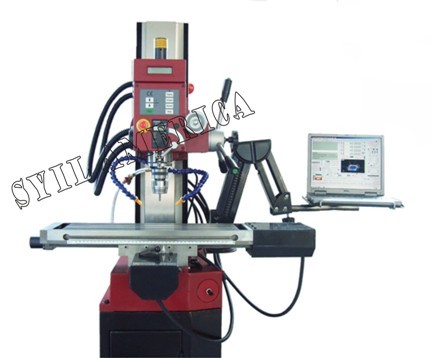

The laptop shown is for demonstration purposes only. It is not included. You may use a desktop PC just as well.
Check Out our website for Addtional options: Flood Coolant, 4th axis, g-code controlled spindle, and more!
Our Super X3 CNC Professional package as follows: $4895
* Our CNC controlled 4th axis Upgrade which includes the cnc driver.
* An adjustable tail stock to go with the fourth Axis.
* A quick change collet set to hold a wide range of bit sizes.
* A fantastic clamp set to hold everything down while milling.
* The Mach 3 CNC controller software license to run it all.
Plus an Optional Steel Stand = $325
Finance Equipment For Your Business - Click Here
The laptop shown is for demonstration purposes only. It is not included. You may use a desktop PC just as well.
