Powder coating batch oven (ovens) 6'w x 7'h x 10.5'd

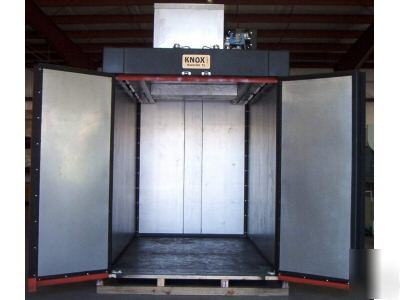

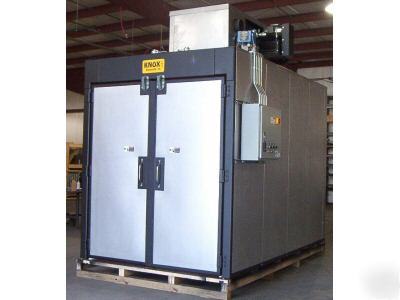

Brand New 500 Degree Powder Coating Curing Oven by Knox Engineering:
Approx. CLEAR Inside Dimensions: 6'W x 7'H x 10.5'D.

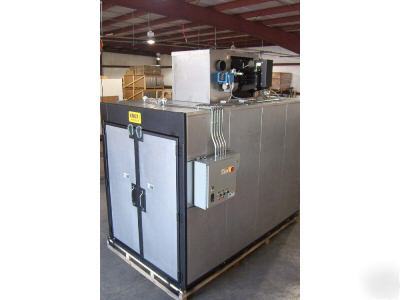

Burner box to be located on top of unit (other locations optional).
Approximate overall height of unit: 10'-5"

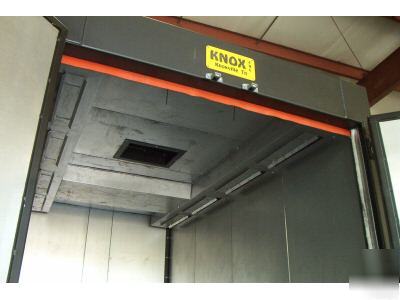

1. Aluminized 4" panels on ceiling and walls with 4# density mineral wool insulation.
2. AFC 18" Plug Fan, 1-1/2 HP, single phase, 220v, 3000 CFM.
3. Exhaust Blower, single phase, 120v, 300 CFM.
4. 400,000 BTU Heat Wise Burner with FM gastrain.

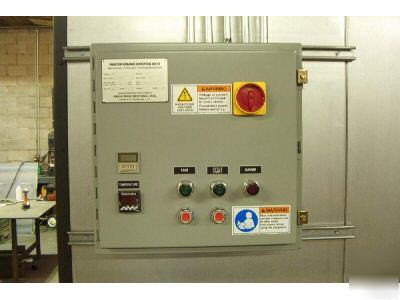

5. On/Off temperature control system with cycle timer and safety interlocks on exhaust and recirculation blowers.
6. Heavy Duty insulated double door system (3/16" frames) with safety latches (on one end of oven only).
7. STANDARD 11 gauge floor (non-insulated).
9. Firebox made of 3/16" plate steel.
Following are available options:
Other sizes are available. Please visit or email ****@knoxovens.com for more information.
