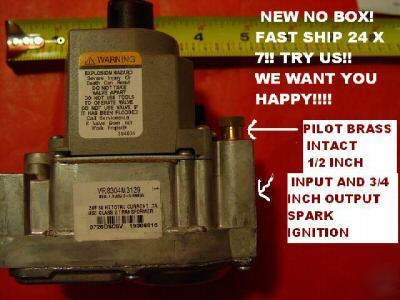

New honeywell VR8304M3129 gas valve 24VAC no box
NEW NO BOX OR PAPERWORK...LOST. HONEYWELL VR8304M3129 CROSSES TO MANY UNITS PLEASE CHECK YOURS FOR PROPER OPERATION. FOR SAFETY WE HAVE CHECKED THE COILS AND THEY ENERGIZE PROPERLY.
SUPPLIED INFORMATION BELOW: BUT WE MAKE MISTAKES PLEASE VERIFY BEFORE ORDERING. YOU ARE RESPONSIBLE FOR PROPER AND SAFE INSTALLATION AND MEETING ALL CODES.
Description 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 3/4 in. inlet/outlet, standard opening and 4.0 in. wc pressure regulator setting
Ignition Type Intermittent Pilot
Inlet/Outlet Size (in.) 1/2 in. x 3/4 in.
Opening Characteristics (standard, step) Standard
Capacity @ 1 in. p.d. 270,000 BTU/hr; 30,000 BTU/hr minimum
Pressure Ratings (psi) 1/2 psi
Pressure Ratings (kPa) 3.5 kPa
Pressure Regulator Setting (psi) 4.0 in. wc
Pressure Regulator Setting (kPa) 1.0 kPa
Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing
Pressure Tapping 1/8 in. NPT with plug
Electrical Connections 1/4 in. male quick-connects
Temperature Range (F) -40 F to +175 F
Temperature Range (C) -40 C to +79 C
Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Dimensions (in.) 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm) 135 mm high x 104 mm wide x 69 mm deep
Approvals, American Gas Association IAS AGA Design Certificate: L2025006
Approvals, Canadian Gas Association CGA Design Certificate: L2025006
Approvals, Underwriters Laboratories Inc UL Component Recognized: MH8191
OUR MOTTO: YOU WAIT ON THE MAILMAN NOT US!
THANK YOU VERY MUCH FOR CHECKING OUT OUR SALE!
WE WANT YOU TO BE HAPPY WITH YOUR PURCHASE!!!!!
