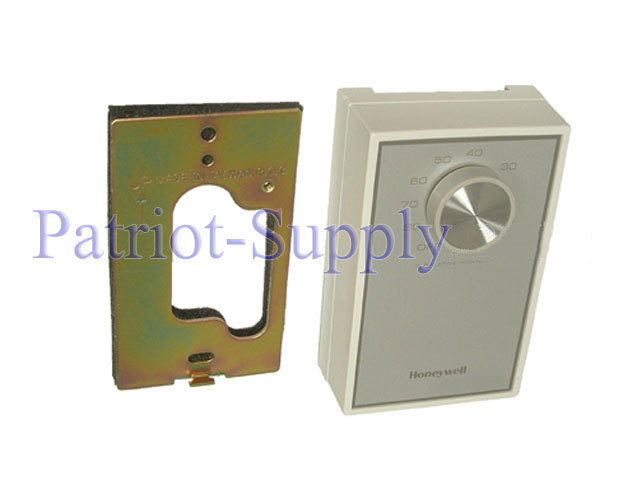

Honeywell H46C1166 wall mounted dehumidistat
Provide automatic control of a humidifier or dehumidifier for dehumidification in air conditioning systems.
• Positive ON-OFF settings permit manual operation of controlled equipment.
• Impact-resistant, molded plastic cover mounts on wall.
• Fully enclosed, dust free, SPST, snap-acting switch.
• Sensing element of thin, moisture sensitive nylon ribbon provides reliable operation even when ambient temperature conditions change.
* Description = Wall mounted Dehumidistat
* Application = Dehumidification
* Voltage = 24 Vac;120 Vac;240 Vac
* Electrical Ratings (120 Vac, Full Load) = 7.5 A
* Electrical Ratings (120 Vac, Locked Rotor) = 30.0 A
* Electrical Ratings (120 Vac, Resistive) = 12.0 A
* Electrical Ratings (240 Vac, Full Load) = 3.8 A
* Electrical Ratings (240 Vac, Locked Rotor) = 15.0 A
* Electrical Ratings (240 Vac, Resistive) = 6.0 A
* Differential = 4% to 6% RH
* Temperature Range (F) = 50 F to 125 F
* Temperature Range (C) = 10 C to 52 C
* Operating Humidity Range (% RH) = 20 to 80% RH
* Dimensions (in.) = 4 11/16 in. high x 2 15/16 in. wide x 2 1/8 in. deep
* Dimensions (mm) = 119 mm high x 75 mm wide x 54 mm deep
* Tradeline Value = Tradeline
SAME AS H46C 1000 EXCEPT PREMIER WHITE.
