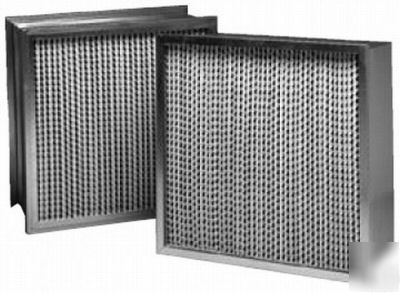

Purolator serva-cell ashrae rated hvac filter 20X20X6
This is for one new Purolator Serva-Cell filter. Filter size is 20x20x6.
These filters are roughly comparable to Hepa filters as 85% effective. Where a Hepa is 99.97% effective. However, Hepa filters are tested differently and do not have a MERV rating. Roughly, a Hepa would stop 50% for particles than this filter. Other factos must be considered such as air flow. Please see link for more details about this.
http:// /go/pure-air-university/103-filtration-fundamentals
Purolator’s SERVA-cell is a high efficiency, extended surface, ASHRAE rated air filter.
• Its box filter construction eliminates the need for retainers and special external wire media supports.
• A high surface area to depth ratio provides the maximum amount of effective filter media in areas of minimum in-line duct space.
• Applications: For conditions such as high humidity, turbulent airflow, intermittent water exposure, and elevated operating temperatures.
• Average efficiency range: 65-95% Average arrestance: 97-99%
• Recommended airflow rate: 500 FPM (625 FPM Max.)
• Media: Continuous sheet of non-combustible, waterproof, microfiberglass.
• Pleat configuration: Radi-edge configuration promotes maximum exposure of media surface area to airflow.
• Pleat support: Pleated around radi-edge, corrugated aluminum separators. All filter packs to be woven on Purolator’s automatic weaving machine.
• Media area/square foot: See Performance data chart.
• Frame: All metal, corrosion resistant, galvanized steel casing available with a single or double galvanized steel header.
• The media pack is bonded and secured to the four inner surfaces of the frame with a non-toxic adhesive.
• Available with a single-channel unitized header or double header option. Also available in a full box exact size.
• U.L. Classification: Class 1 approved and listed.
• Tested in accordance with U.L. Standard 900 and ASHRAE 52.1-1992.
• Recommended operating temperature:
Please see link for chart data:
http://filtrationtechnology.com/ServaCellDataSheet.pdf
These normally sell for $43.40 each.
http:// /filters/sku/SL85-0006.html
