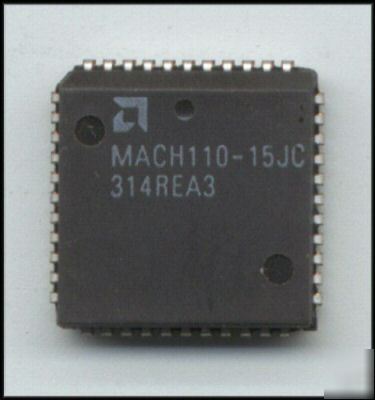

110 / MACH110-15JC / MACH110 / mach 110 amd
Now over 1,400 items in our Store!
High-Density EE CMOS Programmable Logic
12 ns tPD Commercial 4 ns tPD Industrial
32 Flip-flops; 2 clock choices
Pin-compatible with MACH111, MACH210, MACH211, MACH215
The MACH110 is a member of our high-performance EE CMOS MACH 1 family. This device has approximately three times the logic macrocell capability of the popular PAL22V10 without loss of speed.
The MACH110 consists of two PAL blocks interconnected by a programmable switch matrix. The two PAL blocks are essentially "PAL22V16" structures complete with product-term arrays and programmable macrocells.
The switch matrix connects the PAL blocks to each other and to all input pins, providing a high degree of connectivity between the fully-connected PAL blocks. This allows designs to be placed and routed efficiently.
