14 pcs mot # MC10E167FNR2, bbg ecl flip flop 6BIT

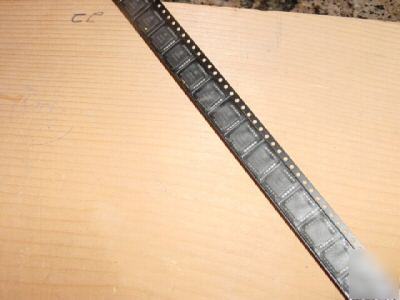

This item includes the following: 14 pcs. Motorola # MC10E167FNR2. (PLCC Package). As always, we will are willing to look at all Best offers! Please note that we will also consider offers on different quantities than we have posted!
The MC10E/100E167 contains six 2:1 multiplexers followed by D flip-flops with single-ended outputs. Input data are selected by the Select control, SEL. The selected data are transferred to the flip-flop outputs by a positive edge on CLK1 or CLK2 (or both). A HIGH on the Master Reset (MR) pin asynchronously forces all Q outputs LOW.
The 100 Series contains temperature compensation.
* 1000MHz Min. Operating Frequency
* 800ps Max. Clock to Output
* Asynchronous Master Resets
* PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
* NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V
* Internal Input Pulldown Resistors
* ESD Protection: > 1 kV HBM, > 75 V MM
* Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
* Moisture Sensitivity Level 1
For Additional Information, see Application Note AND8003/D
* Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
* Transistor Count = 323 devices
* Pb-Free Packages are Available
