New cold laser controller

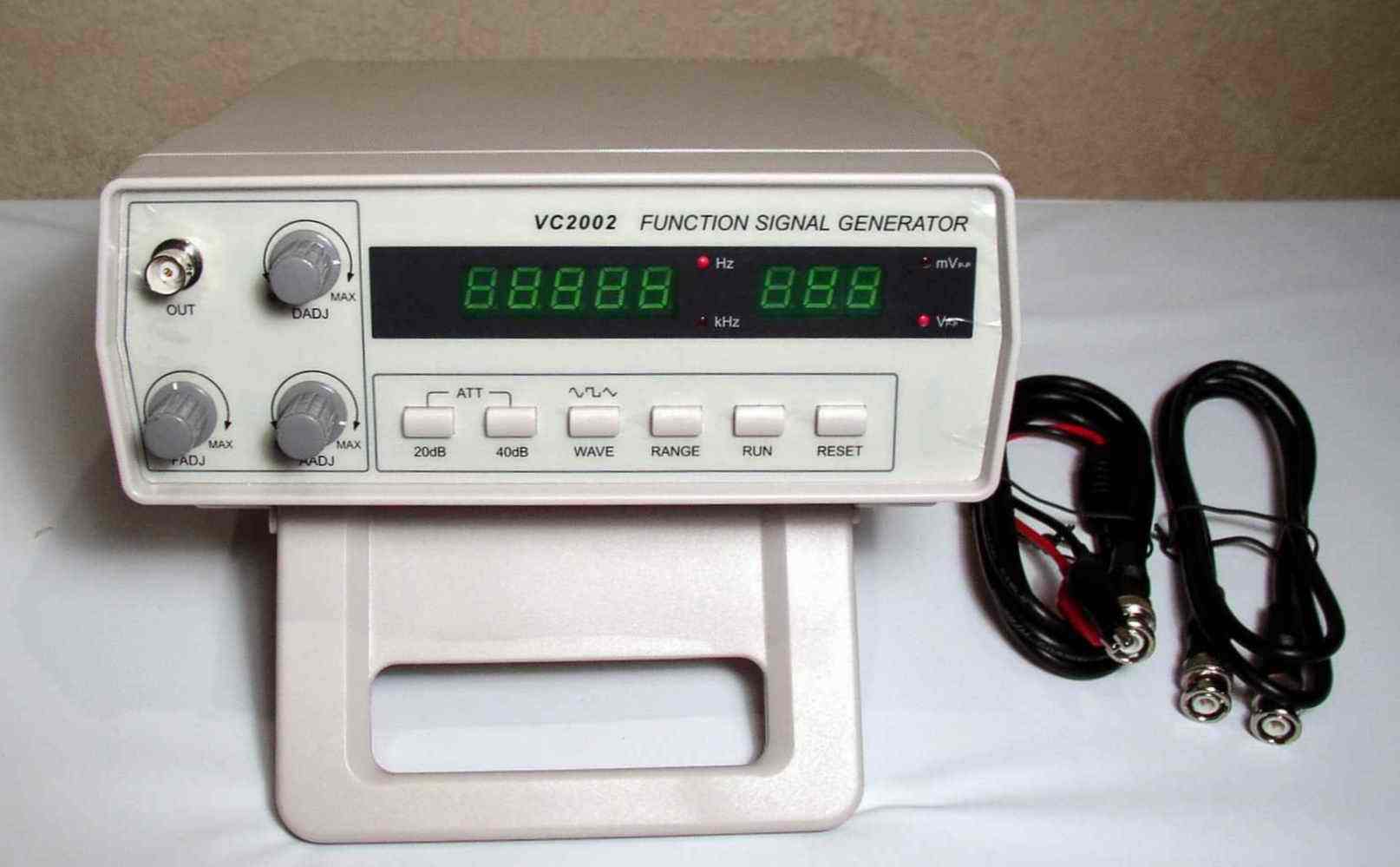

Please note: this exact same function generator has been sold by others as cold laser controller for several times the price. If you look carefully, you will realize that it's the identical product, made by the same manufacturer, all the other vendors do is to put on some labels that cost a few bucks to print. This unit can be used to controll all kinds of laser wands, including 636nm and 808nm. Laser wands are not included, but are available separately. Please see below for technical information on the product.
Output frequency in 7 ranges: 1) 0.2-4 Hz; 2) 4-40 Hz; 3) 40-400 Hz; 4) 400 Hz - 4 KHz; 5) 4-50 KHz; 6) 50-300 KHz; 200 KHz - 2 MHz
Output signal form: sine, triangle, and square wave in three ranges (1 Vp-p to 10 Vp-p; 0.1 Vp-p to 1 Vp-p; 10 mVp-p to 100 mVp-p)
Function duty cycle: 20% to 80%
Frequency stability: +/- 0.1%/min
Signal accuracy: sine wave distortion < 2%; triangle wave linearity > 99%; square wave rise and fall edge < 100 ns
Power consumption: less than 15W (110V AC plug)
Working temperature: 0-40 oC
