Starrett s - 828H center finder complete / machinists

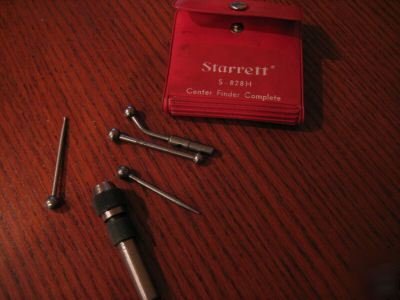

This is a Starrett center finder set S828HZ
This Set is Brand new never used, and will make a great addition to your toolbox.
Wiggler/Center Finder No. S828 and four different attachments adapts to countless applications and are readily interchangeable. The attachments are snapped in the chuck without removing the collet nut and are clamped by a ball swivel-joint, which permits adjustment to an angular position or true concentricity.
With Pointed Shank No. 828A, working centers can be quickly and accurately located. Spring tension on the ball of the point permits guiding the point to true concentricity so that the work can be brought into perfect alignment with the machine spindle.
Ball Contact No. 828B is useful in locating work by first bringing the contact (ball diameter .250" or 6.35mm) against the work, a slot, hole, shoulder, or end, and indexing the work to the desired position relative to the spindle.
Disc Contact No. 828C, which has a small disc at the end (.100"/2.54mm) diameter, permits use in more confined areas such as slots or shallow holes.
Offset Indicator Holder No. 828D with Starrett Last Word Test Indicators, the user can sweep holes or O.D.s for checking run-out or concentricity, establish center distance, check straightness or alignment of flat surfaces.
Feel free to ask any questions you might have, and Thanks for checking out my stuff.
