54532 / M54532P / M54532 / transistor array
Now over 1,400 items in our Store!

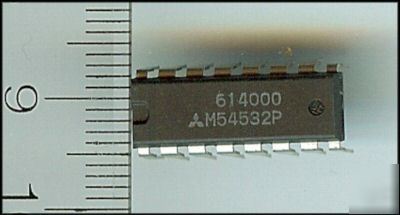

Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY.
M54532P and M54532FP are four-circuit Darlington transistor arrays with clamping diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
High breakdown voltage (BVCEO ³ 50V)
High-current driving (Ic(max) = 1.5A)
Wide operating temperature range (Ta = –20 to +75°C)
Drives of relays and printers, digit drives of indication elements (LEDs and lamps), and power amplification
The M54532P and M54532FP each have four circuits consisting of NPN Darlington transistors. They have resistance of 340
W between input transistor bases and input pins. A clamping diode is provided between each output pin (collector) and COM pin. The output transistor emitters are all connected to the GND pin.
The collector current is 1.5A maximum. Collector-emitter supply voltage is 50V maximum.
The M54532FP is enclosed in a molded small flat package, enabling space-saving design.
