Hp - agilent 6286A 0-20V/0-10A dc power supply

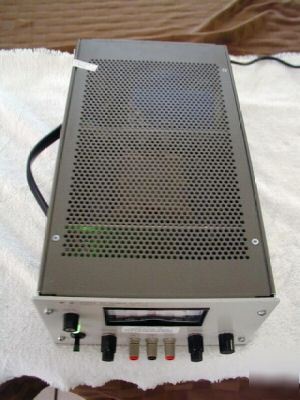

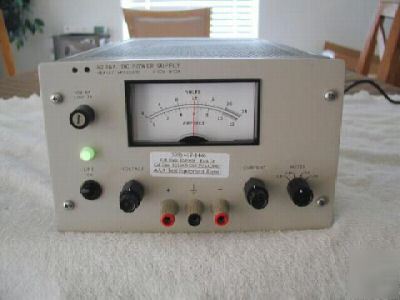

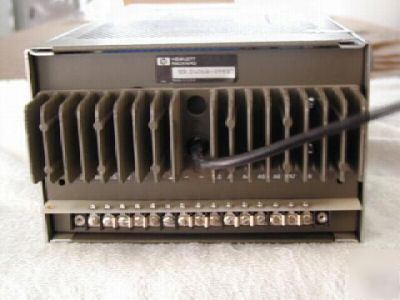

The Agilent HP 6286A Used Power Suppliesare CV/CC and are rated 0 to 20 V @ 0 to 10 amps. The units has 10-turn voltage and current controls that vary the voltage and current from zero to the maximum rated values. Crossover from constant voltage to constant current operation occurs automatically when the load current exceeds the control settings. A four-position meter-function switch selects either of two output voltage ranges or output current ranges (X1, X0.1) for display. The Agilent HP 6286A Used Power Supplies are in a 5.25" high half-rack power supply. They has separate coarse and fine voltage and current controls that allow the voltage and current outputs to be varied from zero to the max rated value.
The Agilent HP 6286A Used Power Supplies employs a series-regulator/SCR-preregulator configuration to achieve the high efficiency necessary for a convection-cooled packaged of this size. It also has excellent regulation, low ripple and noise, and moderate programming speeds.
SPECS: *** DC Output: 0-20V, 0-10A *** Load Effect: 0.01% + 1mV, 0.05% + 1mA *** Source Effect: 0.01% + 1mV, 0.05% + 1mA *** PARD(rms/p-p): 500µV/25mV, 5mA rms *** Drift(stability): 0.1% + 2.5mV, 0.1% + 25mA.
For more informations. The Date Sheet: http:// /vt/assets/PDFS/HP_6284A_HP_6286A_HP_6291A.pdf
Reasonable offers are always well come. REASONABLE ONES!
My phone # is (***)-235-5613. This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html
